KS57P5312

PinoutSpecifications Parameter Symbol Conditions Rating Units Supply voltage VDD - - 0.3 to + 6.5 V Input voltage VI All I/O ports - 0.3 to VDD + 0.3 V Output voltage VO - - 0.3 to VDD + 0.3 V Output current high IOH One pin ...

product image

KS57P5312 Picture
See larger image
SeekIC No. : 004387537 Detail

KS57P5312: PinoutSpecifications Parameter Symbol Conditions Rating Units Supply voltage VDD - - 0.3 to + 6.5 V Input voltage VI All I/O ports - 0.3 to VDD + 0.3 ...

KS57P5312 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KS57P5312
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

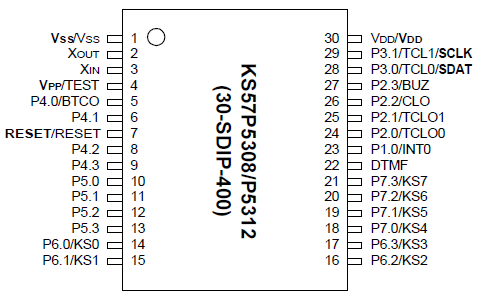

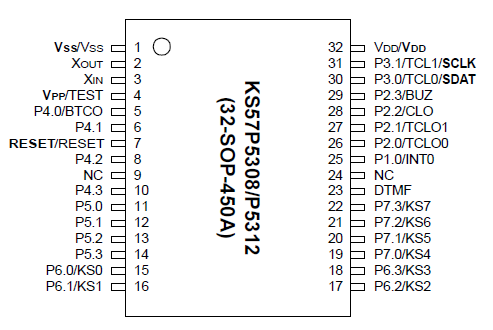

Connection Diagram Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Units
Supply voltage
VDD
-
- 0.3 to + 6.5
V
Input voltage
VI
All I/O ports
- 0.3 to VDD + 0.3
V
Output voltage
VO
-
- 0.3 to VDD + 0.3
V
Output current high
IOH
One pin
- 15
mA
All output pins
- 35
Output current low
IOL
One pin
+ 30(Peak value)
mA
+ 15 (note)
All pins
+ 100 (Peak value)
+ 60 (note)
Operating temperatureC
TA
- 40 to + 85
Storage temperature
TSTG
- 65 to + 150

NOTE: The values for output current low ( IOL ) are calculated as peak value *Duty .


Description

The KS57P5312 single-chip CMOS microcontroller is the OTP (One Time Programmable) version of the KS57C5204/C5208/C5304/C5308/C5312 microcontroller. It has an on-chip EPROM instead of masked ROM. The EPROM is accessed by a serial data format.

The KS57P5312 is fully compatible with the KS57C5208/C5308/C5312, both in function and in pin configuration. Because of its simple programming requirements, the KS57P5312 is ideal for use as an evaluation chip for the KS57C5208/C5308/C5312.
