Part Number: KS7301B



MFG: FDS

Package Cooled: QFP

D/C: 03 04

Description: KS7301B is a CMOS IC designed for Digital Camcorder System. This Processor is Compatible for NTSC/PAL ...


Urgent Purchase

KS7301B General Description


KS7301B is a CMOS IC designed for Digital Camcorder System. This Processor is Compatible for NTSC/PAL & Hiband/ Normal Camcorder System.

KS7301B Maximum Ratings

Characteristics
Symbol
Rating
Unit
Supply Voltage

Input Voltage

Output Voltage

Power Dissipation

Operating Temperature

Storage Temperature		 VDD

VIN

VOUT

PD

TOPR

TSTG		 -0.5~6.5

-0.5~VDD+0.5

-0.5~VDD+0.5

1

-20~+75

-65~+150		 V

V

V

W



KS7301B Features

- Luminance & Chroma Signal Procession
- Built in Timing Generator
- Built in Sync. Generator
- Built in Memory for Detection Part (16bit* 64 word*2 page)
- Built in 1H delay line (1H *2, 8 bit *910)
- Built in Encoder for PAL/NTSC
- Built in DIS Interface Block
- Built in Super Impose function
- Built in Title Mix Block
- Compatible with NORMAL/Hi - Band System
- Built in Micro controller Interface Block

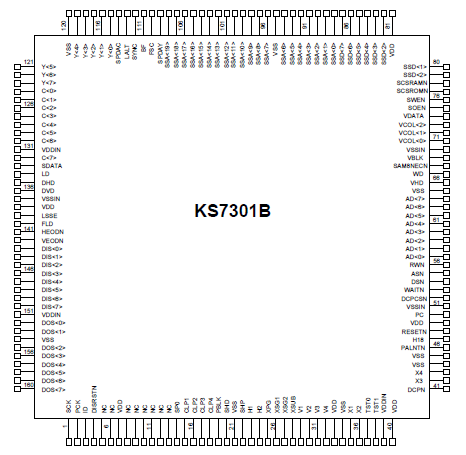

KS7301B Connection Diagram

KS7301B Connection Diagram
