Features:

·  Offers 10 bit input digital signal processing.
·  Carries built-in 2H line memory.(10bit 1024)
·  Performs Y signal processing.
·  Performs C signal processing.
·  Carries an encorder capable to NTSC/PAL dual form application.
·  Carries built-in Y/C 2-channal DA converter.
·  Carries built-in AE/AF/AWB detection system.
·  Provides micom parallel interface.
·  Micom capable to control variable parameters.
·  Offers digital effects interfacing
·  Suites Hi8/Normal CCD application.
·  Suites 470K,520K,570K and 620K CCD controlled EIS system application.
·  Supports 16:9 aspect wide TV (full mode) application.


Application

CCD camera ( camcorder, CCTV, digital still camera, etc.).


Pinout

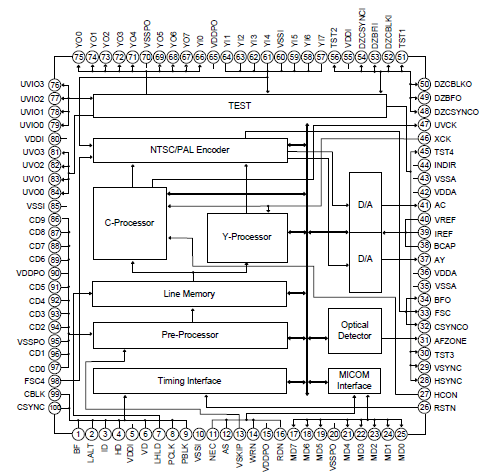

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Supply Voltage
VDD
-0.3 to 7
V
Teminal input Voltage
VI
-0.3 to VDD +0.3
V
Power Dissipation
PD
700
mW
Operating Temperature
TORR
0 ~ +70
Storage Temperature
TSTG
-40 ~ +125
Latch-Up Current
ILU
100
mA



Description

KS7306 is a CCD digital signal processor.

The electronic video signal that passed the color filter array(CFA) pattern of CCD is put to the process of dual correlation sampling and then converted to digital video signal by A/D converter.

Taking the digital video signal so processed as an input, KS7306 performs luminance and chroma signal process and finally outputs signals encoded to NTSC/PAL broadcast standards, and generates detection signals for AE/AF/AWB.
