KS86C6308

Features: CPU• SAM88RCRI CPU coreMemory• 8-KB Internal program memory(ROM)• 256-byte internal register file (160-byte:General Purpose)Instruction Set• 41 instructions• IDLE and STOP instructions added for powerdown modes Instruction Execution Time• 332ns at 12 M...

product image

KS86C6308 Picture
See larger image
SeekIC No. : 004387567 Detail

KS86C6308: Features: CPU• SAM88RCRI CPU coreMemory• 8-KB Internal program memory(ROM)• 256-byte internal register file (160-byte:General Purpose)Instruction Set• 41 instructions• ...

KS86C6308 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KS86C6308
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

CPU
• SAM88RCRI CPU core
Memory
• 8-KB Internal program memory(ROM)
• 256-byte internal register file (160-byte:General Purpose)
Instruction Set
• 41 instructions
• IDLE and STOP instructions added for powerdown modes
Instruction Execution Time
• 332ns at 12 MHz fOSC
Interrupts
• 32 interrupt sources with one vector, each source has its pending bits
• One level, one vector interrupt structure
Oscillation Frequency
• 12 MHz crystal/ceramic oscillator
• External clock source
General I/O
• Bit programmable five I/O ports (30 pins total)
Timer A
• One 8-bit basic timer for watchdog function and programmable oscillation stabilization programmable 8-bit timer internal generation function interval, capture, PWM mode match/capture overflow interrupt
Timer B
• Programmable 16-bit timer interval generation function interval, capture, PWM mode match/capture overflow interrupt
Universal Serial Bus with HUB
• 1 upstream port
• 4 downstream port and one embedded function each port supports separated enable LED builtin 3.3 V voltage regulator
USB/GPIO Function
• Upstream port
Operation Temperature Range
• - 40 °C to + 85 °C
Operation Voltage Range
• 4.0 V to 5.5 V
Package Types
• 64-pin SDIP
• 64-pin QFP


Pinout

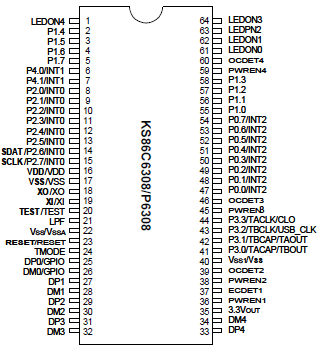

Connection Diagram



Connection Diagram







Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
0.3 to + 6.5
V
Input voltage
VIN
All ports
0.3 to VDD +0.3
V
Output voltage
VO
All output ports
0.3 to VDD + 0.3
V
Output current High
IOH
One I/O pin active
18
mA
All I/O pins active
60
Output current Low
IOL
 One I/O pin active
+30
mA
Total pin current for ports 0, 1, 2, 4
+100
Total pin current for ports3
+ 100
Operating temperature
TA
40 to + 85
Storage temperature
TSTG
65 to + 150



Description

The KS86C6308/P6308 single-chip 8-bit microcontroller is fabricated using an advanced CMOS process. It is built around the powerful SAM88RCRI CPU core.

Stop and Idle power-down modes were implemented to reduce power consumption. To increase on-chip register space, the size of the internal register file was logically expanded. The KS86C6308 has 8 K bytes of program memory on-chip.

Using the SAM88RCRI design approach, the following peripherals were integrated with the SAM88RCRI core:
- Five configurable I/O ports (32 pins)
- 20 bit-programmable pins for external interrupts
- 8-bit timer/counter and 16-bit timwe/counter with three operating modes
- Full speed low speed USB function

The KS86C6308/P6308 is a versatile microcontroller that can be used in a wide range of full/low speed USB support general purpose applications. It is especially suitable for use as a keyboard with hub controller and is available in a 64-pin SDIP and a 64-pin QFP package.
