Features: CPU• SAM87Ri CPU coreMemory• 4-Kbyte internal program memory (ROM)• 208-byte general purpose register area (RAM)Instruction Set• 41 instructions• IDLE and STOP instructions added for power-down modes.Instruction Execution Time• 600 ns at 10 MHz fOSC (m...
KS86P4104: Features: CPU• SAM87Ri CPU coreMemory• 4-Kbyte internal program memory (ROM)• 208-byte general purpose register area (RAM)Instruction Set• 41 instructions• IDLE and STO...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Parameter |
Symbol |
Conditions |
Rating |
Unit |
Supply voltage |
VDD |
0.3 to + 6.5 |
V | |
Input voltage |
VI |
All ports |
0.3 to VDD +0.3 |
V |
Output voltage |
VO |
All output ports |
0.3 to VDD + 0.3 |
V |
Output current High |
IOH |
One I/O pin active |
18 |
mA |
All I/O pins active |
60 | |||
Output current Low |
IOL |
One I/O pin active |
+30 |
mA
|
Total pin current for ports 1,2,3 |
+100 | |||
Total pin current for ports 0 |
+ 200 | |||
Operating temperature |
TA |
40 to + 85 |
| |
Storage temperature |
TSTG |
65 to + 150 |
|

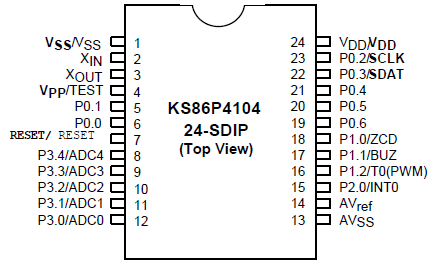

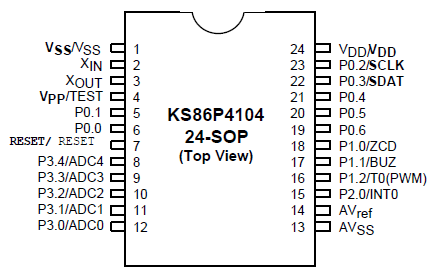

The KS86P4104 single-chip CMOS microcontroller is the OTP (One Time Programmable) version of the KS86C4104 microcontroller. It has an on-chip OTP ROM instead of masked ROM. The EPROM is accessed by serial data format.
The KS86P4104/P4104 is fully compatible with the KS86C4004/C4104 , both in function and in pin configuration.
Because of its simple programming requirements, the KS86P4104 is ideal for use as an evaluation chip for the KS86C4104.
