KS86P6308

Features: CPU• SAM88RCRI CPU coreMemory• 8-KB Internal program memory(ROM)• 256-byte internal register file (160-byte:General Purpose)Instruction Set• 41 instructions• IDLE and STOP instructions added for powerdown modes Instruction Execution Time• 332ns at 12 M...

product image

KS86P6308 Picture
See larger image
SeekIC No. : 004387575 Detail

KS86P6308: Features: CPU• SAM88RCRI CPU coreMemory• 8-KB Internal program memory(ROM)• 256-byte internal register file (160-byte:General Purpose)Instruction Set• 41 instructions• ...

KS86P6308 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KS86P6308
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

CPU
• SAM88RCRI CPU core
Memory
• 8-KB Internal program memory(ROM)
• 256-byte internal register file (160-byte:General Purpose)
Instruction Set
• 41 instructions
• IDLE and STOP instructions added for powerdown modes
Instruction Execution Time
• 332ns at 12 MHz fOSC
Interrupts
• 32 interrupt sources with one vector, each source has its pending bits
• One level, one vector interrupt structure
Oscillation Frequency
• 12 MHz crystal/ceramic oscillator
• External clock source
General I/O
• Bit programmable five I/O ports (30 pins total)
Timer A
• One 8-bit basic timer for watchdog function and programmable oscillation stabilization programmable 8-bit timer internal generation function interval, capture, PWM mode match/capture overflow interrupt
Timer B
• Programmable 16-bit timer interval generation function interval, capture, PWM mode match/capture overflow interrupt
Universal Serial Bus with HUB
• 1 upstream port
• 4 downstream port and one embedded function each port supports separated enable LED builtin 3.3 V voltage regulator
USB/GPIO Function
• Upstream port
Operation Temperature Range
• - 40 °C to + 85 °C
Operation Voltage Range
• 4.0 V to 5.5 V
Package Types
• 64-pin SDIP
• 64-pin QFP


Pinout

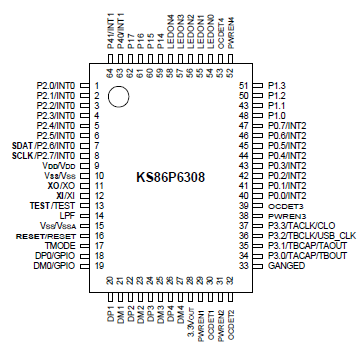

Connection Diagram

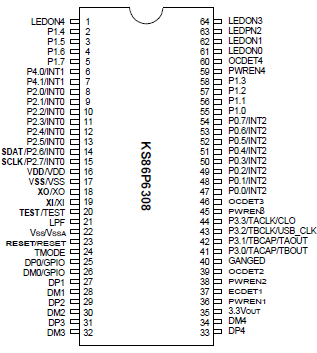

Connection Diagram




Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
0.3 to + 6.5
V
Input voltage
VIN
All ports
0.3 to VDD +0.3
V
Output voltage
VO
All output ports
0.3 to VDD + 0.3
V
Output current High
IOH
One I/O pin active
18
mA
All I/O pins active
60
Output current Low
IOL
 One I/O pin active
+30
mA
Total pin current for ports 0, 1, 2, 4
+100
Total pin current for ports3
+ 100
Operating temperature
TA
40 to + 85
Storage temperature
TSTG
65 to + 150



Description

The KS86P6308 single-chip CMOS microcontroller is the OTP (One Time Programmable) version of the KS86C6308 microcontroller. It has an on-chip OTP ROM instead of masked ROM. The EPROM is accessed by
serial data format.
The KS86P6308 is fully compatible with the KS86C6308, both in function and in pin configuration. Because of its simple programming requirements, the KS86P6308 is ideal for use as an evaluation chip for the KS86C6308.
