Part Number: KS9286B-L
Description: The KS9286B is a CMOS integrated circuit designed for the Digital Audio Signal Processor for Compact D...
- Table of contents:
KS9286B-L
-
Suppliers
DataSheet
General Description
KS9286B-L General Description
The KS9286B is a CMOS integrated circuit designed for the Digital Audio Signal Processor for Compact Disc Player. I is a monolithic IC that builts-in 16-bit Digital Analog Convertor, ESP Interface and Digital De-emphasis additional onventional DSP function.
KS9286B-L Maximum Ratings
|
Characteristic |
Symbol |
Value |
Unit |
| Supply Voltage |
VDD |
-0.3 ~ 7.0 |
V |
| Input Voltage |
VI |
-0.3 ~ 7.0 |
V |
| Output Voltage |
VO |
-0.3 ~ 7.0 |
V |
| Operating Temperature |
TOPR |
-20 ~ 75 |
|
| Storage Temperature |
TSTG |
-40 ~ 125 |
KS9286B-L Features
• EFM data demodulation
• Frame sync detection/protection/insertion
• Powerful error correction (C1: 2error, C2: 4erasure)
• Interpolation
• 8fs digital filter (51th+13th+9th)
• Subcode data serial output
• CLV servo controller
• Micom interface
• Digital audio output
• Digital de-emphasis
• ESP interface
• Built-in 16K SRAM
• Built-in Digital PLL
• Double speed play available
• Built-in 16-bit D/A converter
• Operating Voltage range
KS9286B : 5V
KS9286B-L : 3.4V
• Frame sync detection/protection/insertion
• Powerful error correction (C1: 2error, C2: 4erasure)
• Interpolation
• 8fs digital filter (51th+13th+9th)
• Subcode data serial output
• CLV servo controller
• Micom interface
• Digital audio output
• Digital de-emphasis
• ESP interface
• Built-in 16K SRAM
• Built-in Digital PLL
• Double speed play available
• Built-in 16-bit D/A converter
• Operating Voltage range
KS9286B : 5V
KS9286B-L : 3.4V

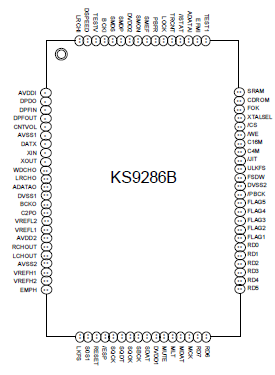

KS9286B-L Connection Diagram
KS9286B-L
PDF/DataSheet Download
- Datasheet: KS9286B-L
- File Size: 306151 KB
- Manufacturer: SAMSUNG [Samsung semiconductor]
- Click here to Download
