Part Number: L6229
Description: The L6229 is a DMOS Fully Integrated Three-Phase Motor Driver with Overcurrent Protection.Real...
- Table of contents:
L6229
-
Suppliers
DataSheet
General Description
L6229 General Description
The L6229 is a DMOS Fully Integrated Three-Phase Motor Driver with Overcurrent Protection.
Realized in MultiPower-BCD technology, the device combines isolated DMOS Power Transistors with CMOS and bipolar circuits on the same chip.
The device includes all the circuitry needed to drive a three-phase BLDC motor including: a three-phase DMOS Bridge, a constant off time PWM Current Controller and the decoding logic for single ended hall sensors that generates the required sequence for the power stage.
Available in PowerDIP24 (20+2+2), PowerSO36 and SO24 (20+2+2) packages, the L6229 features a nondissipative overcurrent protection on the high side Power MOSFETs and thermal shutdown.
L6229 Maximum Ratings
|
Symbol |
Parameter |
Test conditions |
Value |
Unit |
|
VS |
Supply Voltage |
VSA = VSB = VS |
60 |
V |
|
VOD |
Differential Voltage between: VSA, OUT1, OUT2, SENSEA and VSB, OUT3, SENSEB |
VSA = VSB = VS=60V; VSENSEA = VSENSEB = GND |
60 |
V |
|
VBOOT |
Bootstrap Peak Voltage |
VSA = VSB = VS |
VS + 10 |
V |
|
VIN, VEN |
Logic Inputs Voltage Range |
-0.3 to 7 |
V | |
|
VREF |
Voltage Range at pin VREF |
-0.3 to 7 |
V | |
|
VRCOFF |
Voltage Range at pin RCOFF |
-0.3 to 7 |
V | |
|
VRCPULSE |
Voltage Range at pin RCPULSE |
-0.3 to 7 |
V | |
|
VSENSE |
Voltage Range at pins SENSEA and SENSEB |
-1 to 4 |
V | |
|
IS(peak) |
Pulsed Supply Current (for each VSA and VSB pin) |
VSA = VSB = VS; TPULSE < 1ms |
3.55 |
A |
|
IS |
DC Supply Current (for each VSA and VSB pin) |
VSA = VSB = VS |
1.4 |
A |
|
Tstg, TOP |
Storage and Operating Temperature Range |
-40 to 150 |
°C |
L6229 Features
OPERATING SUPPLY VOLTAGE FROM 8 TO 52V
2.8A OUTPUT PEAK CURRENT (1.4A DC)
RDS(ON) 0.73 TYP. VALUE @ Tj = 25 °C
OPERATING FREQUENCY UP TO 100KHz
NON DISSIPATIVE OVERCURRENT DETECTION AND PROTECTION
DIAGNOSTIC OUTPUT
CONSTANT tOFF PWM CURRENT CONTROLLER
SLOW DECAY SYNCHR. RECTIFICATION
60° & 120° HALL EFFECT DECODING LOGIC
BRAKE FUNCTION
TACHO OUTPUT FOR SPEED LOOP
CROSS CONDUCTION PROTECTION
THERMAL SHUTDOWN
UNDERVOLTAGE LOCKOUT
INTEGRATED FAST FREEWEELING DIODES
2.8A OUTPUT PEAK CURRENT (1.4A DC)
RDS(ON) 0.73 TYP. VALUE @ Tj = 25 °C
OPERATING FREQUENCY UP TO 100KHz
NON DISSIPATIVE OVERCURRENT DETECTION AND PROTECTION
DIAGNOSTIC OUTPUT
CONSTANT tOFF PWM CURRENT CONTROLLER
SLOW DECAY SYNCHR. RECTIFICATION
60° & 120° HALL EFFECT DECODING LOGIC
BRAKE FUNCTION
TACHO OUTPUT FOR SPEED LOOP
CROSS CONDUCTION PROTECTION
THERMAL SHUTDOWN
UNDERVOLTAGE LOCKOUT
INTEGRATED FAST FREEWEELING DIODES

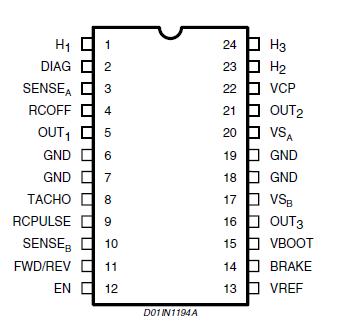

L6229 Connection Diagram
L6229
