L6232E

PinoutSpecifications Symbol Parameter Value Unit VDS sus Peak Output Sustaining Voltage 15 V VS Supply Voltage 15 V VO peak Output Peak Voltage (tpK = 5; 10% d.c.) 18 V VCp Charge Pump Input Voltage 30 V Vi Logic Input Voltage ...

product image

L6232E Picture
See larger image
SeekIC No. : 004389250 Detail

L6232E: PinoutSpecifications Symbol Parameter Value Unit VDS sus Peak Output Sustaining Voltage 15 V VS Supply Voltage 15 V VO peak Output Peak Voltage (tpK = 5; ...

L6232E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
L6232E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

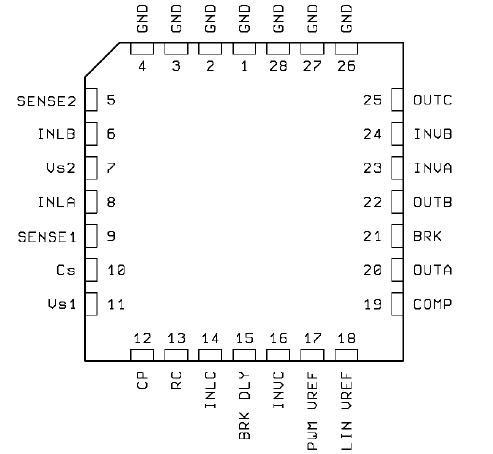

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VDS sus
 Peak Output Sustaining Voltage
15
V
VS
 Supply Voltage
15
V
VO peak
 Output Peak Voltage (tpK = 5; 10% d.c.)
18
V
VCp
 Charge Pump Input Voltage
30
V
Vi
 Logic Input Voltage
-0.3 to 7
V
VREF
 PWM VREF--LIN VREF Input Voltage
-0.3 to 7
V
Vis
 Sense Input Voltage
-1 to 7
V
Ip
 Sink-Source Peak Output Current (*)
3.5
IO
 Sink-Source DC Output Current
1.8
Ptot
 Total Power Dissipation (Tamb = 70°C)
1.5
Tstg, Tj
 Storage and Junction Temperature
-40 to 150



Description

The L6232E is a triple half bridge driver intended or use in brushless DC motor applications. L6232E can be used to form the power stage of a hree-phase, brushless DC motor control loop, nd is especially useful for disk drive applications.  ower drivers are Integrated DMOS transistors  nd feature fast recirculating diodes as an integral art of their structure. The logic inputs are TTLlevel ompatible, with internal pull-up, allowing interfacing o open collector outputs. All necessary ircuitry to perform PWM and linear motor speed ontrol is included. A central charge pump is utilized o drive the upper DMOS transistors, and lso to power the braking function. The L6232E is ackaged in PLCC28.
