Description: The L6388 is an high-voltage device, manufactured with the BCD"OFF-LINE" technology.It has a D...
- Table of contents:
L6388
-
Suppliers
DataSheet
General Description
L6388 General Description
The L6388 is an high-voltage device, manufactured with the BCD"OFF-LINE" technology.
It has a Driver structure that enables to drive independent referenced N Channel Power MOS or IGBT.
The Upper (Floating) Section is enabled to work with voltage Rail up to 600V.The Logic Inputs are CMOS/TTL compatible for ease of interfacing with controlling devices.
L6388 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
Vout |
Output Voltage |
-3 to Vboot - 18 |
V |
|
Vcc |
Supply Voltage |
- 0.3 to +18 |
V |
|
Vboot |
Floating Supply Voltage |
- 1 to 618 |
V |
|
Vhvg |
High Side Gate Output Voltage |
- 1 to Vboot |
V |
|
Vlvg |
Low Side Gate Output Voltage |
-0.3 to Vcc +0.3 |
V |
|
Vi |
Logic Input Voltage |
-0.3 to Vcc +0.3 |
V |
|
dVout/dt |
Allowed Output Slew Rate |
50 |
V/ns |
|
Ptot |
Total Power Dissipation (Tj = 85°C) |
750 |
mW |
|
Tj |
Junction Temperature |
150 |
°C |
|
Tstg |
Storage Temperature |
-50 to 150 |
°C |
L6388 Features
HIGH VOLTAGE RAIL UP TO 600 V
dV/dt IMMUNITY ± 50 V/nsec IN FULL TEMPERATURE RANGE
DRIVER CURRENT CAPABILITY:400 mA SOURCE,650 mA SINK
SWITCHING TIMES 70/40 nsec RISE/FALL WITH 1nF LOAD
3.3V, 5V, 15V CMOS/TTL INPUTS COMPARATORS WITH HYSTERESYS AND PULL DOWN
INTERNAL BOOTSTRAP DIODE
OUTPUTS IN PHASE WITH INPUTS
DEAD TIME AND INTERLOCKING FUNCTION
dV/dt IMMUNITY ± 50 V/nsec IN FULL TEMPERATURE RANGE
DRIVER CURRENT CAPABILITY:400 mA SOURCE,650 mA SINK
SWITCHING TIMES 70/40 nsec RISE/FALL WITH 1nF LOAD
3.3V, 5V, 15V CMOS/TTL INPUTS COMPARATORS WITH HYSTERESYS AND PULL DOWN
INTERNAL BOOTSTRAP DIODE
OUTPUTS IN PHASE WITH INPUTS
DEAD TIME AND INTERLOCKING FUNCTION

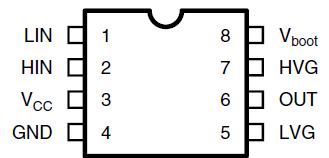

L6388 Connection Diagram
L6388
PDF/DataSheet Download
- Datasheet: L6388
- File Size: 67290 KB
- Manufacturer: ST
- Click here to Download
