L6598

PMIC Solutions High Volt Reson Cont

product image

L6598 Picture
See larger image
SeekIC No. : 00535885 Detail

L6598: PMIC Solutions High Volt Reson Cont

L6598 Data Sheet

floor Price/Ceiling Price

US $ .83~.84 / Piece | Get Latest Price
Part Number:
L6598
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 0~810
  • 810~1000
  • Unit Price
  • $.84
  • $.83
  • Processing time
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Mounting Style : Through Hole Package / Case : PDIP-16
Packaging : Tube

Description

Packaging : Tube
Mounting Style : Through Hole
Package / Case : PDIP-16


Features:

· HIGH VOLTAGE RAIL UP TO 600V
· dV/dt IMMUNITY±50V/ns IN FULL TEMPERATURE RANGE
· DRIVER CURRENT CAPABILITY:
    250mA SOURCE
    450mA SINK
· SWITCHING TIMES 80/40ns RISE/FALL WITH 1nF LOAD
· CMOS SHUT DOWN INPUT
· UNDER VOLTAGE LOCK OUT
· SOFT START FREQUENCY SHIFTING TIMING
· SENSE OP AMP FOR CLOSED LOOP CONTROL OR PROTECTION FEATURES
· HIGH ACCURACY CURRENT CONTROLLED OSCILLATOR
· INTEGRATED BOOTSTRAP DIODE
· CLAMPING ON Vs
· SO16, DIP16 PACKAGES


Pinout

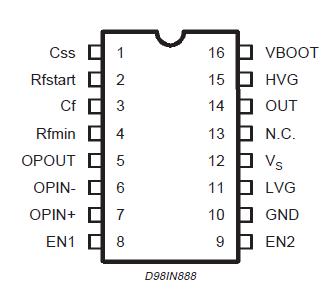

Connection Diagram


Specifications

Symbol Parameter Value Unit
IS Supply Current at Vcl (*) 25 mA
VLVG Low Side Output 14.6 V
VOUT High Side Reference -1 to VBOOT -18 V
VHVG High Side Output -1 to VBOOT V
VBOOT Floating Supply Voltage 618 V
dVBOOT/dt VBOOT pin Slew Rate (repetitive) ±50 V/ns
dVOUT/dt OUT pin Slew Rate (repetitive) ±50 V/ns
Vir Forced Input Voltage (pins Rfmin, Rfstart) 0.3 to 5 V
Vic Forced Input Volatge (pins Css, Cf) 0.3 to 5 V
VEN1, VEN2 Enable Input Voltage 0.3 to 5 V
IEN1, IEN2 Enable Input Current ±3 mA
Vopc Sense Op Amp Common Mode Range -0.3 to 5 V
Vopd Sense Op Amp Differential Mode Range 5 to 5 V
Vopo Sense Op Amp Output Voltage (forced) 4.6 V
Tstg Storage Temperature -40 to +125 °C
Tj Junction Temperature -40 to +125 °C
Tamb Ambient Temperature -40 to +125 °C

(*) The device is provided of an internal Clamping Zener between GND and the Vs pin, It must not be supplied by a low impedance voltage source.
Note : ESD immunity for pins 14, 15 and 16 is guaranteed up to 900 (Human Body Model).


Description

The L6598 is manufactured with the BCD OFF LINE technology, able to ensure voltage ratings up to 600V, making L6598 perfectly suited for AC/DC Adapters and wherever a Resonant Topology can be beneficial. The L6598 is intended to drive two Power MOS, in the classical Half Bridge Topology. A dedicated Timing Section allows the designer to set Soft Start Time, Soft Start and Minimum Frequency. An Error Amplifier, together with the two Enable inputs, are made available. In addition, the integrated Bootstrap Diode and the Zener Clamping on low voltage supply, reduces to a minimum the external parts needed in the applications.




Parameters:

Technical/Catalog InformationL6598
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
PackagingTube
Package / Case16-DIP (300 mil)
Power (Watts)-
Voltage - Input8.7 ~ 16.6 V
Voltage - Output600V
Frequency Range61.8 ~ 400kHz
Operating Temperature-40°C ~ 150°C
Output IsolationIsolated
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names L6598
L6598
497 6704 5 ND
49767045ND
497-6704-5



Customers Who Bought This Item Also Bought
