L9333MD

Rise Time :
Fall Time :
Supply Voltage - Max :
Supply Voltage - Min :
Supply Current :
Maximum Power Dissipation :
Product :
Mounting Style : SMD/SMT
Packaging : Tube
Type : Low Side
Maximum Operating Temperature : + 150 C
Package / Case : SO-20


Features:

` WIDE OPERATING SUPPLY VOLTAGE RANGE FROM 4.5V UP TO 32V FOR TRANSIENT 45V
` VERY LOW STANDBY QUIESCENT CURRENT TYPICALLY < 2A
` INPUT TO OUTPUT SIGNAL TRANSFER FUNCTION PROGRAMMABLE
` HIGH SIGNALRANGE FROM -14V UP TO 45V FOR ALL INPUTS
` 3.3V CMOS COMPATIBLE INPUTS
` DEFINED OUTPUT OFF STATE FOR OPEN INPUTS
` FOUR OPEN DRAIN DMOS OUTPUTS, WITH R<sub>DSon</sub> = 1.5 FOR V<sub>S</sub> > 6V AT 25°C
` OUTPUT CURRENT LIMITATION
` CONTROLLED OUTPUT SLOPE FOR LOW EMI
` OVERTEMPERATURE PROTECTION FOR EACH CHANNEL
` INTEGRATED OUTPUT CLAMPING FOR FAST INDUCTIVE RECIRCULATION V<sub>FB</sub> > 45V
` STATUS MONITORING FOR
   - OVERTEMPERATURE
   - DISCONNECTED GROUND OR SUPPLY VOLTAGE

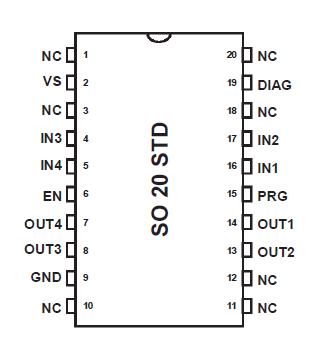

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	Supply voltage DC Supply voltage Pulse (T = 400ms)	-0.3 to 32 -0.3 to 45	VV
dVS/dt	Supply voltage transient	-10 to +10	V/s
VIN, VEN, VPRG	Input, Enable, Programming Pin voltage	-14 to 45	V
VOUT	Output voltage	-0.3 to 45 1)	V
VDIAG	Diagnostic output voltage	-0.3 to 45	V

Notes: 1. In flyback phase the output voltage can reach 60V.


Description

The L9333MD is a monolithic integrated quad low side driver.L9333MD is intended to drive lines, lamps or relais in automotive or industrial applications.

Parameters:

Technical/Catalog Information	L9333MD
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	20-SOIC (7.5mm Width)
Mounting Type	Surface Mount
Type	Low Side
Voltage - Supply	4.5 V ~ 32 V
On-State Resistance	1.7 Ohm
Current - Output / Channel	-
Current - Peak Output	700mA
Packaging	Tube
Input Type	Inverting
Number of Outputs	4
Operating Temperature	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	L9333MD L9333MD
