L9337MD

Rise Time :
Fall Time :
Supply Voltage - Max :
Product :
Supply Current :
Maximum Power Dissipation :
Mounting Style : SMD/SMT
Supply Voltage - Min : 4.5 V
Packaging : Tube
Maximum Operating Temperature : + 150 C
Package / Case : SO-20
Type : Triple Low Side Driver


Features:

`WIDE INPUT VOLTAGE RANGE FROM -24V UP TO +45V
`WIDE OPERATING SUPPLY VOLTAGE RANGE FROM 4.5V UP TO 32V
`REVERSE BIASINGPROTECTED (V<sub>S</sub> = -24V)
`VERY LOW STANDBY QUIESCENT CURRENT < 2A
`PROGRAMMABLESIGNALTRANSFERPOLARITY
`TTL AND CMOS COMPATIBLE INPUTS
`DEFINED OUTPUT OFF STATE OFF FOR OPEN INPUTS
`THREE OPEN DRAIN DMOS OUTPUTS, WITH R_DSon = 1.5 at 25°C and V_S > 6V
`OUTPUT CURRENT LIMITATION
`CONTROLLEDOUTPUTSLOPEFORLOWEMI
`OVERTEMPERATURESHUT-DOWN
`INTEGRATED OUTPUT CLAMPING FOR FASTINDUCTIVE RECIRCULATION VFB > 45V
`STATUS MONITORING FOR
   - OVERTEMPERATURE
   - DISCONNECTED GROUND OR SUPPLY VOLTAGE
`ESD: ALL PINS ARE GUARANTEED TILL 2kV HUMAN BODY MODEL

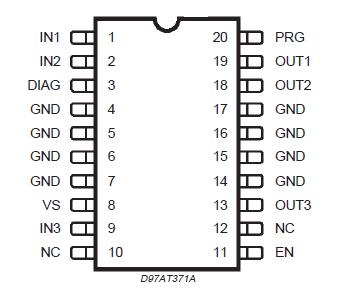

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	Supply voltage	-24 to 45	V
Pin voltages
VIN	Input, enable, program	-24 to 45	V
VOUT	Output	-0.3 to 45	V
VDIAG	Diagnostic output	-0.3 to 45	V

Description

The L9337MD is a monolithic integrated triple low side driver realized in advanced Multipower-BCD technology. L9337MD is intended to drive lines, lamps or relais in automotive or industrial applications.
