L9347

Features: ` Quad low-side switch` 2 x 5A designed as conventional switch` 2 x 2.5A designed as switched current-regulator` Low ON-resistance 2 x 0.2, 2 x 0.35 (typ.)` Power SO-36 - package with integrated cooling area` Integrated free-wheeling and clamping Z-diodes` Output slope control` Short cir...

product image

L9347 Picture
See larger image
SeekIC No. : 004389645 Detail

L9347: Features: ` Quad low-side switch` 2 x 5A designed as conventional switch` 2 x 2.5A designed as switched current-regulator` Low ON-resistance 2 x 0.2, 2 x 0.35 (typ.)` Power SO-36 - package with inte...

L9347 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
L9347
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Quad low-side switch
` 2 x 5A designed as conventional switch
` 2 x 2.5A designed as switched current-regulator
` Low ON-resistance 2 x 0.2, 2 x 0.35 (typ.)
` Power SO-36 - package with integrated cooling area
` Integrated free-wheeling and clamping Z-diodes
` Output slope control
` Short circuit protection
` Selective overtemperature shutdown
` Open load detection
` Ground and supply loss detection
` External clock control
` Recirculation control
` Regulator drift detection
` Regulator error control
` Regulator resolution 5mA
` Status monitoring
` Status push-pull stages
` Electrostatic discharge (ESD) protection


Pinout

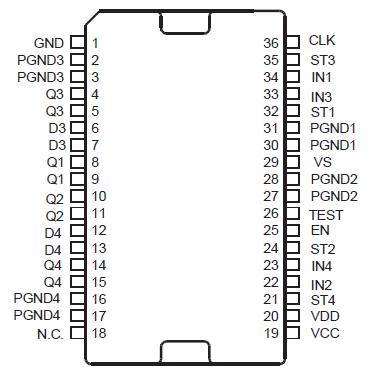

Connection Diagram


Specifications

The absolute maximum ratings are the limiting values for this device. Damage may occur if this device is subjected
to conditions which are beyond these values.

Symbol Parameter Test Conditions Min Typ Max Unit
EQ Switch off energy for inductive loads       50 mJ
Voltages
VS Supply voltage   -0.3   40 V
VCC, VDD Supply voltage   -0.3   6 V
VQ Output voltage static       40 V
VQ Output voltage during clamping t < 1ms     60 V
VIN, VEN Input voltage IN1 to IN4, EN II < |10|mA -1.5   6 V
VCLK Input Voltage CLK   -1.5   6 V
VST Output voltage status   -0.3   6 V
VD Recirculation circuits D3, D4       40 V
VDRmax max. reverse breakdown voltage of free
wheeling diodes D3, D4		       55 V
Currents
IQ1/2 Output current for Q1 and Q2   >5   internal
limited		 A
IQ3/4 Output current for Q3 and Q4   >3   internal
limited		 A
IQ1/2,
IPGND1/2		 Output current at reversal supply for Q1
and Q2		   -4     A
IQ3/4,
IPGND3/4		 Output current at reversal supply for
Q3 and Q4		   -2     A
IST Output current status pin   -5   5 mA
ESD Protection
ESD Electrostatical Discharging MIL883C ±2     kV
ESD Output Pins (Qx, Dx) vs. Common GND
(PGND1-4 + GND)		 ±4     kV



Description

The L9347 is an integrated quad low-side power switch to drive inductive loads like valves used in ABS systems. Two of the four channels are current regulators with current range from 250mA to 2.25A and an accuracy of 10%.

All channels are protected against fail functions. L9347 are monitored by a status output.
