L9615D

Network Controller & Processor ICs Can Bus Transceiver

product image

L9615D Picture
See larger image
SeekIC No. : 00321553 Detail

L9615D: Network Controller & Processor ICs Can Bus Transceiver

L9615D Data Sheet

floor Price/Ceiling Price

US $ .46~.53 / Piece | Get Latest Price
Part Number:
L9615D
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 0~1390
  • 1390~2000
  • 2000~5000
  • 5000~10000
  • Unit Price
  • $.53
  • $.5
  • $.48
  • $.46
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Controller Area Network (CAN) Number of Transceivers : 1
Data Rate : 500 KBd Maximum Operating Temperature : + 110 C
Mounting Style : SMD/SMT Package / Case : SO
Packaging : Tube

Description

Supply Current (Max) :
Product : Controller Area Network (CAN)
Number of Transceivers : 1
Mounting Style : SMD/SMT
Packaging : Tube
Package / Case : SO
Data Rate : 500 KBd
Maximum Operating Temperature : + 110 C


Features:

`L9615 MEETS ISO/DIS 11898 UP TO 500KBAUD
`TRANSMITTER
   - GENERATION OF DIFFERENTIAL OUTPUT SIGNALS
   - SHORT CIRCUIT PROTECTED FROM -5V TO 36V, DETECTION & SHUTDOWN
   - SLOPE CONTROL TO REDUCE RFI AND EMI
   - TWO STATES ADJUSTABLE SLOPE CONTROL (500KBAUD/125KBAUD)
`RECEIVER
   - DIFFERENZIAL INPUT WITH HIGH INTERFERENCE SUPPRESSION
   - COMMON MODE INPUT VOLTAGE RANGE (VCOM) FROM -2V TO VS+3V
`PACKAGE: SO 8


Pinout

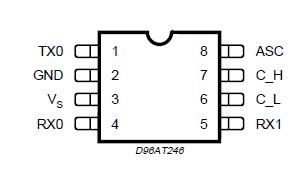

Connection Diagram


Specifications

Symbol Parameter Value Unit
VS Supply Voltage -0.3 to 7 V
VC_H, VC_L Bus Voltage at C_H, C_L (VS 0 to 5.5V) -5 to 36 V
IC_H, IC_L Off State Leakage Current at C_H, C_L ( VS =0 to 5.5V,
VC_H = -5 to 36V, VC_L = -5 to 36 )		 -3 to 5 mA
VDC DC Voltage at TXO, ASC (VS 0 to 5.5V) GND -0.3 to VS +0.3 V
IRXO Output Current at RXO (VS 0 to 5.5V) -0.3 to 1 mA
Tstg, TJ Storage and Junction Temperature Range -40 to 150 °C
Top Operating Temperature Range -40 to 110 °C

All voltages, except bus voltage, are defined with respect to pin 2
Positive currents flow into the IC.


Description

The L9615 is a bidirectional transceiver for signal conditioning and processing in connection with a CAN controller. Data rates of up to 500KBAUD are supported using either shielded or nonshielded pair of lines.




Parameters:

Technical/Catalog InformationL9615D
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
Number of Drivers/Receivers1/1
TypeTransceiver
Voltage - Supply4.5 V ~ 5.5 V
Package / Case8-SOIC (3.9mm Width)
PackagingTube
ProtocolCAN
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names L9615D
L9615D
