Part Number: L9651



MFG: ST





Description: The L9651 consists of four identical low side power switches. A serial diagnostic interface indicates ...


Urgent Purchase

L9651 General Description


The L9651 consists of four identical low side power switches. A serial diagnostic interface indicates failure mode of each switch (short circuit to VBAT or ground and open load or over temperature).

L9651 Maximum Ratings

Symbol Parameter Value Unit
TSTG Storage Temperature -55 to 150 oC
TJ Operating Junction Temperature -40 to 150 oC
VBAT DC Supply Voltage -2 to 30 V
VBATtr Transient Supply Voltage; t < 400ms 40 V
VOUT Output Voltage 65 V
VOUTtr Transient Output Voltage; during clamping 78 V
ECL Output Clamping energy; repetition rate < 100 Hz 10 mJ
-IOUT Output reverse current 2 A
VR,VINi,VDI,
VCLVSY		 Control Input voltage -0.3 to 6.5 V
VDO Control Output voltage -0.3 to 6.5 V

L9651 Features

· Modified VDMOS Power Stage (UDSBR > 80V)
· RDSON < 500 mOhm (Tj = 25°C)
· CMOS Compatible Inputs
· Enable Input (Reset)
· Outputs Capable of up to 2.2 Amperes
· Outputs Internally Clamped at 70V for Fast Inductive Load Switch Off
· Wide operating supply voltage from 4.7V up to 30V

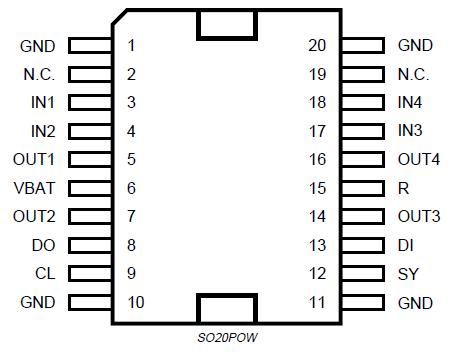

L9651 Connection Diagram

L9651 Connection Diagram
