L9925

Series: -
Mounting Type: Surface Mount
Evaluation Tools: -
Voltage - Load: -
Packaging: Tube
Applications: Stepper Motor Driver
Number of Outputs: 2
Package / Case: 28-SOIC (0.295", 7.50mm Width)
Operating Temperature: -40°C ~ 150°C
Current - Output: ±1.2A
Manufacturer: STMicroelectronics
Voltage - Supply: 9 V ~ 16 V
Supplier Device Package: 28-SO


Features:

`2 INDEPENDENTLY CONTROLLED H-BRIDGES
`R_DS,ON <0.9 @T_amb = 25°C, VS = 14V
`0.8A DC CURRENT WITHOUT HEAT SINK
`LOW QUIESCENT MODE I_q <200A
`THEMAL PROTECTION
`CROSSCONDUCTION PROTECTION
`SUPPLYVOLTAGEUP TO 40V
`CMOS COMPATIBLE INPUTS
`OUTPUT SHORT-CIRCUIT PROTECTION

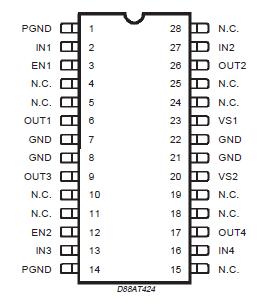

Pinout




Specifications

Absolute Maximum Ratings are those values beyond whih damage to the device may occur. Functional operation under these condition isn't implied.
For voltages and currents applied externally to the device:

Symbol	Parameter	Value	Unit
VVSDC	Dc Supply Voltage	-0.3 to 26	V
VVSP	Supply Voltage Pulse (T 400ms) (1)	40	V
IOUT	DC Output Load Current	±1.2	A
IOUT MAX	DC Output Current: for VOUT > VVS +0.3V or VOUT < -0.3V the internal DMOS reverse and/or substrate diode become conductive and the applied current should not exceed the specified limit.	±1.8	A
VIN1,2	DC Input Voltage	-0.3 to 7	V
VEN	Enable Input Voltage	-0.3 to 7	V
Tstg, Tj	Storage and Junction Temperature	-40 to 150	°C
Ptot	Total Power Dissipation (Tpins = 80°C)                                       (Tamb = 70°C no copper area on PCB)                                       (Tamb =70°C8cm2 copper area on PCB)	5 1.23 2	W W W

(1) Device may be overstressed if pulsed simultaneous with short circuit at one or more of the outputs will be present.


Description

The L9925 is a dual full bridge driver for stepper motor applications. Realized in BCD (Bipolar, CMOS & DOS) techology, logic circuits, precise linear blocks and power transistors are combined to optimize circuit performance and minimize off L9925 components.Schmitt triggers are used for all input stages and are fully compatible with 5V CMOS logic levels. When both enable signals are low, the L9925 is commanded to a low quiescent current state and will draw less than 200mA from the battery.

The charge pump is integrated on chip; no external componentsare required. Full performance is maintaned for 9V <VS <16V. Extended ranges of 6V <<VS <9V and 16V <VS <40V yields full functionally but with relaxed performance. Over temperature protection and ESD protection to all pins ensures relability and reduces system integration failures.

Parameters:

Technical/Catalog Information	L9925
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Applications	Stepper Motor Driver
Number of Outputs	2
Voltage - Supply	9 V ~ 16 V
Voltage - Load	-
Current - Output	±1.2A
Operating Temperature	-40°C ~ 150°C
Package / Case	28-SOIC (7.5mm Width)
Packaging	Tube
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	L9925 L9925 497 3938 5 ND 49739385ND 497-3938-5
