LA5623M

Features:

• Reset circuit (output 1) that detects the input voltage and provides a delay time of 200 s.
• System reset circuit (output 2) that provides a switchable delay time of 25, 50, 100, or 200 ms.
• Low operating limit voltage
• Both reset 1 and reset 2 have hysteresis characteristics.

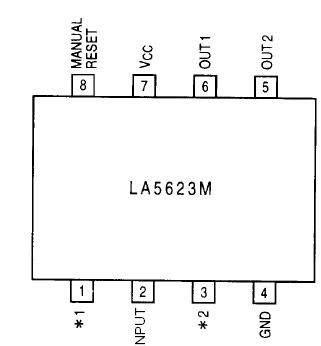

Pinout




Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Supply voltage	VCC		0.3 to +12	V
Output 1 sink current	ISINK1		8	mA
Output 2 sink current	ISINK2		8	mA
Output voltage	VO		0.3 to +10	V
Manual input voltage	VRES		0.3 to +10	V
Input voltage range	VIN1		0.3 to +10	V
Ct0, Ct1 voltage	Vct		0 to +10	V
Allowable power dissipation	Pd max		250	mW
Operating temperature	Topr		20 to +75
Storage temperature	Tstg		40 to +125

Description
