Part Number: LB11880



MFG: SANYO

Package Cooled: DIP



Description: The LB11880 is a sensorless motor driver that also includes a loading motor driver. It is ideal for drum motor drive in...


Urgent Purchase

LB11880 General Description


The LB11880 is a sensorless motor driver that also includes a loading motor driver. It is ideal for drum motor drive in VCR products.

LB11880 Maximum Ratings

Parameter Symbol Conditions Ratings Unit
Maximum supply voltage 1 VCC max   14.5 V
Maximum supply voltage 2 VCCL max   14.5 V
Maximum supply voltage 3 VREG max   7.0 V
Output voltage Vomax   14.5 V
Input voltage VI1max   0.3 to VREG + 0.3 V
Cylinder current Iomax   1.0 A
Loading current Iomax (AVE)   0.4 A
Iomax (peak)   1.2 A
Allowable power dissipation Pdmax When mounted on the specified printed circuit board* 2.8 w
Operating temperature Topr   20 to +75 °C
Storage temperature Tstg   55 to +150 °C
Note: * Specified printed circuit board: 114.3*76.1*1.6 mm glass-epoxy board

LB11880 Features

• Soft switching drive
• No Hall sensors required
• No FG sensors required
• Built-in PG amplifier
• Built-in thermal shutdown circuit
• Current limiter circuit
• On-chip loading motor driver

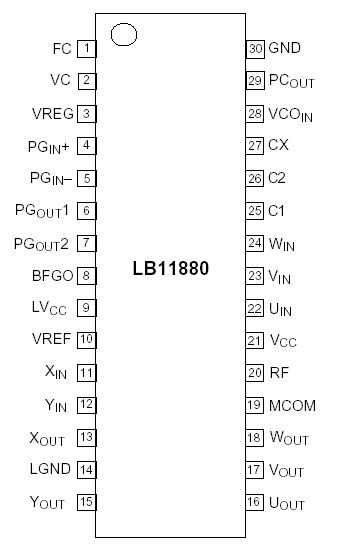

LB11880 Connection Diagram

LB11880 Connection Diagram

LB11880 datasheet

LB11880
PDF/DataSheet Download
