LB1821M
-
Suppliers
DataSheet
General Description
LB1821M Maximum Ratings
|
Parameter |
Symbol |
Conditions |
Ratings |
Unit |
| Maximum supply voltage |
VCC max |
9 |
V | |
| Maximum output current |
IOUT |
VREG pin |
10 |
mA |
| Output current |
IO max |
UL, UV, and WL outputs |
30 |
mA |
| Allowable power dissipation |
Pd max |
0.9 |
W | |
| Operating temperature |
Topr |
20 to +80 |
°C | |
| Storage temperature |
Tstg |
55 to +150 |
°C |
LB1821M Features
• Direct PWM drive output
• Speed discriminator + PLL speed control circuit
• FG and integrating amplifiers
• Forward/reverse switching circuit
• Braking circuit (short braking)
• Speed lock detection output
• Full complement of on-chip protection circuits, including lock protection, current limiter, and thermal shutdown protection circuits.

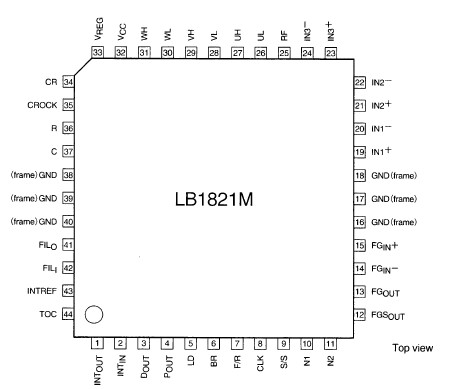

LB1821M Connection Diagram
LB1821M
PDF/DataSheet Download
- Datasheet: LB1821M
- File Size: 228820 KB
- Manufacturer: SANYO [Sanyo Semicon Device]
- Click here to Download
