Purchase LB1843V, In-stock LB1843V From SeekIC.
MFG:SANYO Package Cooled:SSOP
- Table of contents:
LB1843V
-
Suppliers
DataSheet
General Description
LB1843V Maximum Ratings
| Parameter | Symbol | Conditions | Ratings | Unit |
| Maximum supply voltage | VCC/VS max | 10.5 | V | |
| VS max |
250 |
mA | ||
| Input applied voltage | VIN | 0.3 to +10 | V | |
| Allowable power dissipation | Pd max | With board ( 30 x 30 x 1.5 mm3 ) | 800 | mW |
| Operating temperature | TOPR | 20 to +80 | °C | |
| Storage temperature | Tstg | 40 to +125 | °C |
LB1843V Features
Output current limiter and detector built in
Low-saturation voltage bidirectional bridge circuit built in:VOsat = 0.40 V typ. at 400 mA
Practically no current drain (0.1 A or less) in standby mode
Input-linked reference voltage built in
Thermal shutdown circuit built in .
Requires little space, since few external components are needed and the IC is contained in a small SSOP-20 package

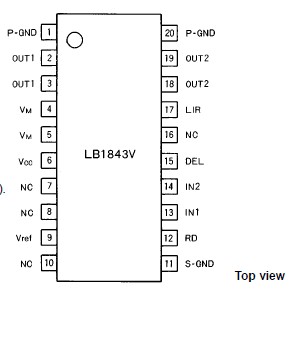

LB1843V Connection Diagram
LB1843V
PDF/DataSheet Download
- Datasheet: LB1843V
- File Size: 92768 KB
- Manufacturer: SANYO [Sanyo Semicon Device]
- Click here to Download
