LC33832

Features: • 32768 words ´ 8 bits configuration• Single 5 V ±10% power supply• All input and output (I/O) TTL compatible• Fast access times and low power dissipation• 4 ms refresh using 256 refresh cycle• CE-only refresh, auto-refresh, and self-refresh̶...

product image

LC33832 Picture
See larger image
SeekIC No. : 004391587 Detail

LC33832: Features: • 32768 words ´ 8 bits configuration• Single 5 V ±10% power supply• All input and output (I/O) TTL compatible• Fast access times and low power dissipationR...

LC33832 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC33832
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 32768 words ´ 8 bits configuration
• Single 5 V ±10% power supply
• All input and output (I/O) TTL compatible
• Fast access times and low power dissipation
• 4 ms refresh using 256 refresh cycle
• CE-only refresh, auto-refresh, and self-refresh
• Low-power version: 100 A self-refresh current
• Package
DIP28-pin (600 mil) plastic package: LC33832P, PL
DIP28-pin (300 mil) plastic package: LC33832S, SL
SOP28-pin (450 mil) plastic package: LC33832M, ML

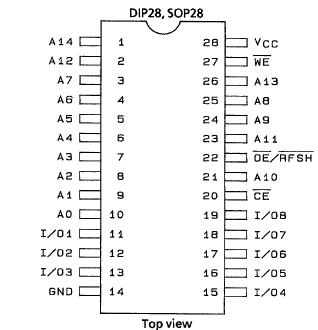

Pinout

Connection Diagram


Specifications

Characteristic
Symbol
Ratings
Unit
Note
Maximum supply voltage
VCCmax
1.0 to +7.0
V
1
Supply input voltage
VIN
1.0 to +7.0
V
1
Supply output voltage
VOUT
1.0 to +7.0
V
1
Allowable power dissipation
PDmax
600
mW
1
Output short-circuit current
IOUT
50
mA
1
Operating Temperature
TOPR
0 to +70
°C
1
Storage and Junction Temperature
TSTG
55 to +150
°C
1


Note: 1) Stresses greater than the above listed maximum values may result in damage to the device.




Description

The LC33832 series is composed of pseudo static RAM that operates on a single 5 V power supply and is organized as 32768 words × 8 bits. By using memory cells each composed of a single transistor and capacitor, together with peripheral CMOS circuitry, this series achieves ease of use with high density, high speed, and low power dissipation. The LC33832 series can easily accomplish auto-refresh and self-refresh by means of OE/RFSH input. As with asynchronous static RAM, WE input uses a system for incorporating input data at the WE rise, thereby facilitating interfacing with a microcomputer.

The LC33832 series features pin compatibility with 256 K static RAM (the LC36256A series), and available packages are the standard 28-pin DIP with widths of 600 mil or 300 mil, and the SOP with a width of 450 mil. CE-only refresh can be accomplished by selecting address 256 (A0 to A7) within 4 ms.
