Purchase LC74201JE, In-stock LC74201JE From SeekIC.
Part Number: LC74201JE
Description: The LC74201JE is a CMOS IC that integrates the signal processing functions required of a video CD deco...
- Table of contents:
LC74201JE
-
Suppliers
DataSheet
General Description
LC74201JE General Description
The LC74201JE is a CMOS IC that integrates the signal processing functions required of a video CD decoder to a single chip. All that it takes to make a version 1 or version 2 video CD player is the addition of a CD digital signal processor, DRAM, an audio D/A converter, digital video encoder, and similar components.
LC74201JE Maximum Ratings
|
Parameter |
Symbol |
Conditions |
Conditions |
Unit | |
|
min |
max | ||||
|
Power supply voltage |
VDD1 |
DVDD1 pin |
DVSS1 0.3 |
DVSS1 + 4.0 |
V |
|
VDD2 |
DVDD2 pin |
DVSS2 0.3 |
DVSS2 + 6.0 |
V | |
|
VDD3 |
AVDD pin |
AVSS 0.3 |
AVSS + 4.0 |
V | |
|
Input voltage |
VIN1 |
BV0 to EV3, GU0 to GU3, RY0 to RY3, RESET, XPALIN, XNTIN, CLKIN, VCOR, PLLFIL, TEST pins |
DVSS1 0.3 |
DVDD1 + 0.3 |
V |
|
VIN2 |
VOE, AS/DS, STB, AD0 to AD7, CLKSEL CDCK, CDEMPH, CDC2P, CDSD, CDBCK, CDLRCK pins |
DVSS1 0.3 |
5.5 |
V | |
|
VIN3 |
BV4 to BV7, GU4 to GU7, RY4 to TY7, DD0 to DD15 pins |
DVSS2 0.3 |
DVSS2 + 0.3 |
V | |
|
Output voltage |
VOUT |
BV0 to EV3, GU0 to GU3, RY0 to RY3, PCK0, XPALOUT, XNTOUT, CLK0, AULRCK, AUEMPH, AUDOUT, AUBC0 pins |
DVSS1 0.3 |
DVDD1 + 0.3 |
V |
|
VOUT |
IRQ, AD0 to AD 7, CAS pins |
DVSS1 0.3 |
V | ||
|
VOUT |
BV4 to BV7, GU4 to GU7, RY4 to TY7, FSC0, HSYNC, CSYNC, BLANK, RAS0, RAS1, WE, OE, AA0 to AA8 pins |
DVSS2 0.3 |
DVSS2 + 0.3 |
V | |
|
Maximum current drain |
Pd max |
Ta = 25°C |
500 |
mW | |
|
Operating temperature |
Topr |
10 |
+70 |
°C | |
|
Storage temperature |
Tstg |
40 |
+125 |
°C | |
LC74201JE Features
• Incorporation of virtually almost all the functionality required by a video CD player from the CD-ROM decoder through
to the MPEG audio and video decoders in a single chip
• Fully automatic playback with automatic decoding within the LSI in response to simple external commands and the
MPEG bit stream
• Special playback functions are activated by command inputs, and do not require signal processing by the host
icrocontroller
• Support for two external DRAM configurations: 4 M bits (256k×16 bits) or 4 M bits (256k×16 bits) + 1 M bit (64k×16
bits)
• Support for a Track 1 DRAM user area (i.e., sector buffer) of up to 8 k bytes (4 M bits of external DRAM) or 22 k bytes
(4 M +1 M bits of external DRAM)
• Automatic synchronization of audio and video
• Built-in high-speed decoder core that supports variablespeed video playback at up to quadruple speed. Audio
support for normal and double-speed playback.
• Internal registers that offer configuration settings for connecting to most commercially available CD digital signal
processors and D/A converters
• Compatible with version 2 of the video CD standard. Support for superimposition of closed caption data on the
output signal as specified in the EIA608 standard
• Support for Photo CD standard. (Base/4 and Base/16)
to the MPEG audio and video decoders in a single chip
• Fully automatic playback with automatic decoding within the LSI in response to simple external commands and the
MPEG bit stream
• Special playback functions are activated by command inputs, and do not require signal processing by the host
icrocontroller
• Support for two external DRAM configurations: 4 M bits (256k×16 bits) or 4 M bits (256k×16 bits) + 1 M bit (64k×16
bits)
• Support for a Track 1 DRAM user area (i.e., sector buffer) of up to 8 k bytes (4 M bits of external DRAM) or 22 k bytes
(4 M +1 M bits of external DRAM)
• Automatic synchronization of audio and video
• Built-in high-speed decoder core that supports variablespeed video playback at up to quadruple speed. Audio
support for normal and double-speed playback.
• Internal registers that offer configuration settings for connecting to most commercially available CD digital signal
processors and D/A converters
• Compatible with version 2 of the video CD standard. Support for superimposition of closed caption data on the
output signal as specified in the EIA608 standard
• Support for Photo CD standard. (Base/4 and Base/16)

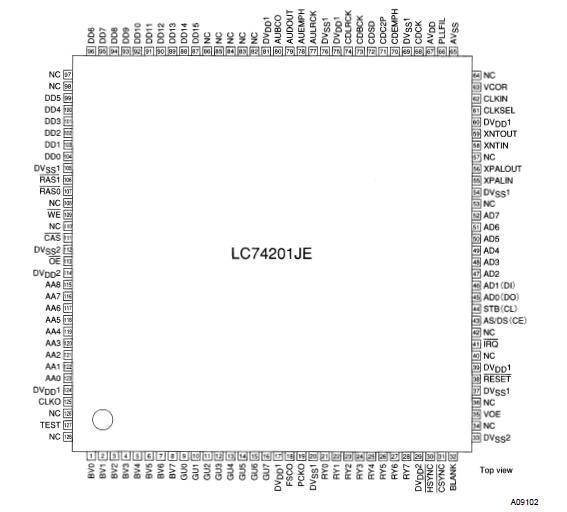

LC74201JE Connection Diagram
LC74201JE
PDF/DataSheet Download
- Datasheet: LC74201JE
- File Size: 309125 KB
- Manufacturer: SANYO [Sanyo Semicon Device]
- Click here to Download
