LC74730M

Features: • Screen format: 10 lines ´ 24 characters (up to 240 characters)• Character format: 8 (horizontal) ´ 8 (vertical) (interpolation function provided)• Character sizes: Three horizontal sizes and 3 vertical sizes• Number of characters in font: 64 characte...

product image

LC74730M Picture
See larger image
SeekIC No. : 004391970 Detail

LC74730M: Features: • Screen format: 10 lines ´ 24 characters (up to 240 characters)• Character format: 8 (horizontal) ´ 8 (vertical) (interpolation function provided)• Character...

LC74730M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC74730M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/3

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Screen format: 10 lines ´ 24 characters (up to 240 characters)
• Character format: 8 (horizontal) ´ 8 (vertical) (interpolation function provided)
• Character sizes: Three horizontal sizes and 3 vertical sizes
• Number of characters in font: 64 characters
• Display start position
    - Horizontal: 64 positions
    - Vertical: 64 positions
• Blinking: In character units
• Types of blinking: Two types with approximately 1.0 sec. and 0.5 sec.
• Background color: Four background colors (in internal synchronization mode) (For the PAL-M format: 1 color; blue background)
• External control input: 8-bit serial data input format
• Built-in sync separator circuit
• Built-in synchronization recognition circuit: Recognizes whether or not external synchronizing signals are present
• Video output: NTSC and PAL-M format composite outputs, Y-C output


Pinout

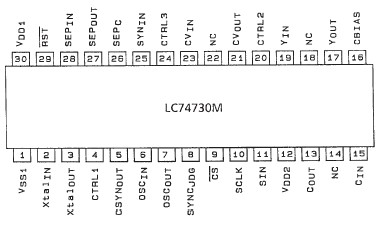

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Ratings
Unit
Maximum supply voltage
VDD max
 VDD1, VDD2
VSS0.3 to VSS+7.0
V
Maximum input voltage
VIN max
All input pins
VSS0.3 to VDD+0.3
V
Maximum output voltage
VOUT max
 CSYNOUT, SYNCJDG, SEPOUT
VSS0.3 to VDD+0.3
V
Allowable power dissipation
Pd max

300
mW
Operating temperature
Topr

30 to +70
°C
Storage temperature
Tstg

40 to +125
°C
