Part Number: LC74785



MFG: SANYO

Package Cooled: DIP





Urgent Purchase

LC74785 Maximum Ratings

Parameter
Symbol
Conditions
Ratings
Unit
Supply voltage
VDD
VDD1 and VDD2
VSS0.3 to VSS+7.0
V
Input voltage
VIN
All input pins
VSS0.3 to VDD+0.3
V
Output voltage
VOUT
 LN21, CPDT, SEPOUT, and SYNCJDG
VSS0.3 to VDD+0.3
V
Allowable power dissipation
Pd max
Ta = 25°C
350
mW
Operating temperature
Topr
30 to +70
°C
Storage temperature
Tstg
40 to +125
°C

LC74785 Features

• Display format: 24 characters by 12 rows (Up to 288 characters)
• Character format: 12 (horizontal) ´ 18 (vertical) dots
• Character sizes: Three sizes each in the horizontal and vertical directions
• Characters in font: 128
• Initial display positions: 64 horizontal positions and 64 vertical positions
• Blinking: Specifiable in character units
• Blinking types: Two periods supported: About 1.0 second and about 0.5 second
• Blanking: Over the whole font (12 ´ 18 dots)
• Background color
    - Background coloring: 8 colors (internal synchronization mode): 4fsc
    - Background coloring: 6 colors (internal synchronization mode): 2fsc
• Line background color
    - Can be set for 3 lines
    - Line background coloring: 8 colors (internal synchronization mode): 4fsc
    - Line background coloring: 6 colors (internal synchronization mode): 2fsc
• External control input: 8-bit serial input format
• On-chip sync separator circuit
• EDS support
• Video output
     - NTSC-format composite output
• Package
    24-pin plastic DIP (300 mil)
    24-pin plastic SOP (375 mil)

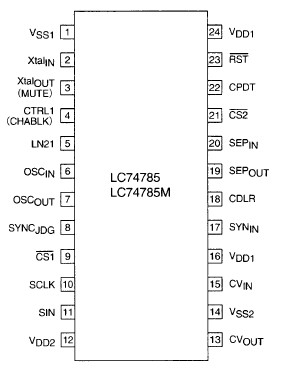

LC74785 Connection Diagram

LC74785 Connection Diagram
