Description: The LC74786, LC74786M, and LC74786JM are onscreen display controller CMOS ICs that display characters ...


Urgent Purchase

LC74786 General Description


The LC74786, LC74786M, and LC74786JM are onscreen display controller CMOS ICs that display characters and patterns on the TV screen under microprocessor control. These ICs support 12 × 18-dot characters and can display 12 lines by 24 characters of text.

LC74786 Maximum Ratings

Parameter
Symbol
Conditions
Ratings
Unit
Maximum supply voltage
VDD max
VDD1 and VDD2
VSS0.3 to VS +6.5
V
Maximum input voltage
VIN max
All input pins
VS 0.3 to VDD+0.3
V
Maximum output voltage
VOUT max
HFTONOUT, SYNCJDG, and SEPOUT VSS 0.3 to VDD+0.3
V
Allowable power dissipation
Pd max
 Ta = 25°C
350
mW
Operating temperature
Topr

-30to+70
°C
Storage temperature
Tstg

-40to+125
°C

LC74786 Features

• Display format: 24 characters by 12 rows (Up to 288 characters)
• Character format: 12 (horizontal) * 18 (vertical) dots
• Character sizes: Three sizes each in the horizontal and vertical directions
• Characters in font: 128 (128 characters, one spacing character, and one transparent spacing character)
• Initial display positions: 64 horizontal positions and 64 vertical positions
• Blinking: Specifiable in character units
• Blinking types: Two periods supported: About 1.0 second and about 0.5 second
• Blanking: Over the whole font (12 * 18 dots)
• Background color: 8 colors (internal synchronization mode): 2fSC and 4fSC
• Line background color
   - Can be set for 3 lines
   - Line background color: 8 colors (internal synchronization mode): 2fSC and 4fSC
• External control input: 8-bit serial input format
• On-chip sync separator circuit
• Video outputs - NTSC, PAL, PAL-N, PAL-M, NTSC 4.43, and PAL60 format composite video outputs
• Package
   - 24-pin plastic DIP-24S (300 mil)
   - 24-pin plastic MFP-24 (375 mil)
   - 24-pin plastic MFP-24S (300 mil)

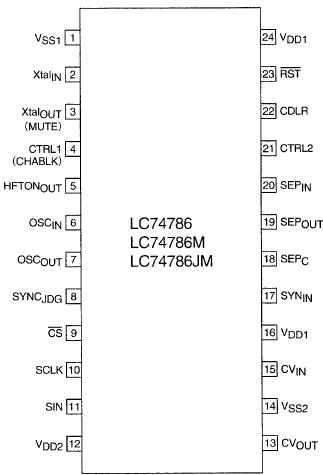

LC74786 Connection Diagram

LC74786 Connection Diagram
