LC74788_1228237
-
Suppliers
DataSheet
General Description
LC74788_1228237 Maximum Ratings
| Parameter | Symbol | Conditions | Ratings | Unit |
| Maximum supply voltage | VDD max | VDD1, VDD2, | VSS 0.3 to VSS + 6.5 | V |
| Maximum input voltage | VIN max | All input pins | VSS 0.3 to VDD + 0.3 | V |
| Maximum output voltage | VOUT max | HFTONOUT, SYNCJDG, and SEPOUT | VSS 0.3 to VDD + 0.3 | V |
| Allowable power dissipation | Pd max | Ta = 25°C | 350 | mW |
| Operating temperature | Topr | 30 to +70 | ||
| Storage temperature | Tstg | 40 to +125 |
LC74788_1228237 Features
• Display format: 24 characters by 12 rows (Up to 288characters)
• Character format: 12 (horizontal) * 18 (vertical) dots
• Character sizes: Three sizes each in the horizontal andvertical directions
• Characters in font: 128 (128 characters, one spacingcharacter, and one transparent spacing character)
• Initial display positions: 64 horizontal positions and 64vertical positions
• Blinking: Specifiable in character units
• Blinking types: Two periods supported: About 1.0second and about 0.5 second
• Blanking: Over the whole font (12 * 18 dots)
• Background color: 8 colors (internal synchronizationmode): 2fSC and 4fSC
• Line background color
- Can be set for 3 lines
- Line background color: 8 colors (internalsynchronization mode): 2fSC and 4fSC
• External control input: 8-bit serial input format
• On-chip sync separator circuit
• Video outputs - NTSC, PAL, PAL-N, PAL-M, NTSC4.43, and PAL60 format composite video outputs
• Package
- 24-pin plastic DIP-24S (300 mil)
- 24-pin plastic MFP-24 (375 mil)
- 24-pin plastic MFP-24S (300 mil)
• Character format: 12 (horizontal) * 18 (vertical) dots
• Character sizes: Three sizes each in the horizontal andvertical directions
• Characters in font: 128 (128 characters, one spacingcharacter, and one transparent spacing character)
• Initial display positions: 64 horizontal positions and 64vertical positions
• Blinking: Specifiable in character units
• Blinking types: Two periods supported: About 1.0second and about 0.5 second
• Blanking: Over the whole font (12 * 18 dots)
• Background color: 8 colors (internal synchronizationmode): 2fSC and 4fSC
• Line background color
- Can be set for 3 lines
- Line background color: 8 colors (internalsynchronization mode): 2fSC and 4fSC
• External control input: 8-bit serial input format
• On-chip sync separator circuit
• Video outputs - NTSC, PAL, PAL-N, PAL-M, NTSC4.43, and PAL60 format composite video outputs
• Package
- 24-pin plastic DIP-24S (300 mil)
- 24-pin plastic MFP-24 (375 mil)
- 24-pin plastic MFP-24S (300 mil)

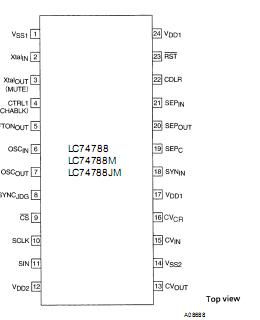

LC74788_1228237 Connection Diagram
