Part Number: LC75392M









Description: The LC75392 (DIP-30SD) and the LC75392M (MFP- 30S) are electronic volume control ICs that provide inpu...


Urgent Purchase

LC75392M General Description


The LC75392 (DIP-30SD) and the LC75392M (MFP- 30S) are electronic volume control ICs that provide input and output switching, volume, and tone control functions controlled by data transferred over a serial interface.

LC75392M Maximum Ratings

Parameter Symbol Conditions
Ratings
Unit
Maximum supply voltage VDDmax VDD
12
V
Maximum input voltage VIN max CL, DI, CE, L1, L2, L3, L4, R1, R2, R3, R4
VSS0.3 to VDD + 0.3
V
Allowable power dissipation Pdmax Ta 85°C

160
mW
Operating temperature Topr
40 to +85
Storage temperature Tstg
50 to +125

LC75392M Features

·Serial data interface: Support for control and communication in the CCB format.

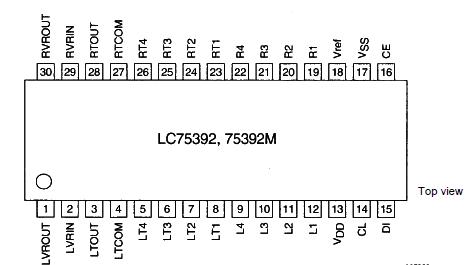

LC75392M Connection Diagram

LC75392M Connection Diagram

LC75392M datasheet

LC75392M
PDF/DataSheet Download
