Purchase LC75394NE, In-stock LC75394NE From SeekIC.
MFG:SANYO D/C:96+
Part Number: LC75394NE
MFG: SANYO
D/C: 96+
Description: The LC75394NE is an electronic volume control system providing control over volume, balance, 5-band equalizer, and inpu...
- Table of contents:
LC75394NE
-
Suppliers
DataSheet
General Description
LC75394NE General Description
The LC75394NE is an electronic volume control system providing control over volume, balance, 5-band equalizer, and input switching based on serial inputs.
LC75394NE Maximum Ratings
|
Parameter |
Symbol |
Conditions |
Ratings |
Unit |
|
Maximum supply voltage |
VDD max |
VDD |
11 |
V |
|
Maximum input voltage |
VIN max |
CL, DI, CE, L1 to L4, R1 to R4, LTIN, RTIN, LVRIN, RVRIN |
VSS 0.3 to VDD + 0.3 |
V |
|
Allowable power dissipation |
Pd max |
Ta 85°C |
310 |
mW |
|
Operating temperature |
Topr |
30 to +85 |
°C | |
|
Storage temperature |
Tstg |
40 to +125 |
°C |
LC75394NE Features
• Built-in buffer amplifiers reduce the number of external parts necessary.
• Silicon gate CMOS reduces switching noise.
• Serial data input -Supports CCB* format communication with the system controller.
• A built-in reference voltage circuit divides the supply voltage (VDD) in half.
• Silicon gate CMOS reduces switching noise.
• Serial data input -Supports CCB* format communication with the system controller.
• A built-in reference voltage circuit divides the supply voltage (VDD) in half.

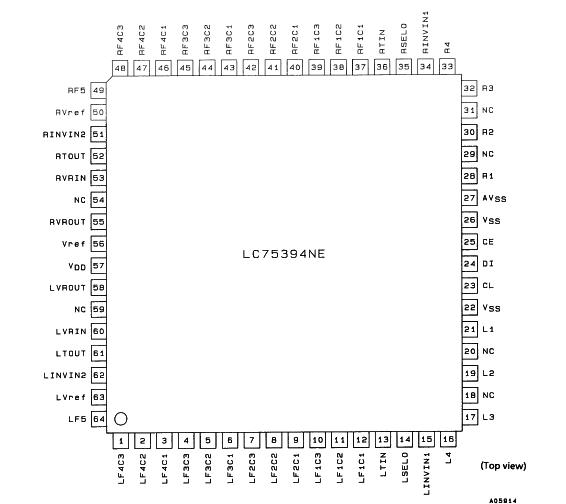

LC75394NE Connection Diagram
LC75394NE
PDF/DataSheet Download
- Datasheet: LC75394NE
- File Size: 389916 KB
- Manufacturer: SANYO [Sanyo Semicon Device]
- Click here to Download
