Product Details

Description



Features:

• 80-pin QIP (miniature, reduced space package)
• Silicon gate CMOS process (for low power)
• 5 V single-voltage power supply (for use in portable products)

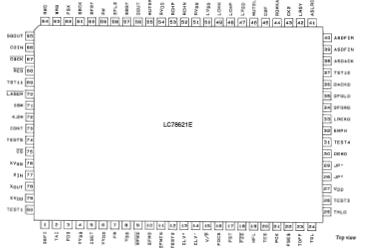

Pinout

Connection Diagram


Specifications

Parameter Symbol Conditions
Ratings
Unit
Maximum supply voltage VDDmax
VSS 0.3 to VSS + 7.0
V
Maximum input voltage VIN max
VSS 0.3 to VSS + 0.3
V
Maximum output voltage VOUT max
VSS 0.3 to VSS + 0.3
V
Allowable power dissipation Pdmax

300
mW
Operating temperature Topr
20 to +75
Storage temperature Tstg
40 to +125



Description

The LC78621E is a CMOS LSI that implements the signal processing and servo control required by compact disk players, laser disks, CD-V, CD-I and related products. The LC78621E provides several types of signal processing, including demodulation of the optical pickup EFM signal, de-interleaving, error detection and correction, and digital filters that can help reduce the cost of CD player units. It also processes a rich set of servo system commands sent from the control microprocessor. It also incorporates an EFM-PLL circuit and a one-bit D/A converter.
