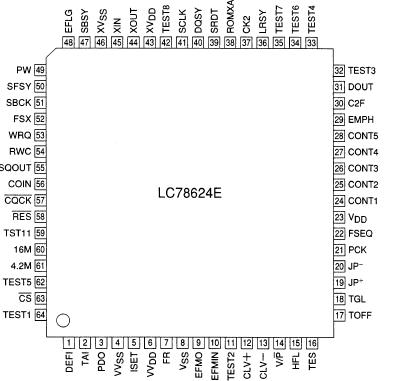

Features: • 64 pin QFP• 5 V single-voltage power supplyPinoutSpecifications Parameter Symbol Conditions Ratings Unit Maximum supply voltage VDDmax VSS 0.3 to VSS + 7.0 V Maximum input voltage VIN VSS 0.3 to VSS + 0.3 V Maximum output voltage ...
LC78624E: Features: • 64 pin QFP• 5 V single-voltage power supplyPinoutSpecifications Parameter Symbol Conditions Ratings Unit Maximum supply voltage VDDmax VSS 0.3 to VSS +...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Parameter | Symbol | Conditions |
Ratings |
Unit | |
Maximum supply voltage | VDDmax |
VSS 0.3 to VSS + 7.0 |
V | ||
Maximum input voltage | VIN |
VSS 0.3 to VSS + 0.3 |
V | ||
Maximum output voltage | VOUT |
VSS 0.3 to VSS + 0.3 |
V | ||
Allowable power dissipation | Pdmax |
300 |
mW | ||
Operating temperature | Topr |
20 to +75 |
|||
Storage temperature | Tstg |
40 to +125 |
The LC78624E is a CMOS LSI that implements the signal processing and servo control required by compact disc players. Including an EFM-PLL and text decoder, the LC78624E strictly limits functionality to basic signal processing and servo system operation to achieve the best cost-performance balance for low-end players. As basic functions, the LC78624E provides demodulation of the EFM signal from the optical pickup, de-interleaving, error detection and correction, and processes servo commands sent from the control microcontroller.
