Part Number: LC78632RE
Description: The LC78632RE is a compact disc D/A signal-processing LSI for Video-CD players that provides a variabl...
- Table of contents:
LC78632RE
-
Suppliers
DataSheet
General Description
LC78632RE General Description
The LC78632RE is a compact disc D/A signal-processing LSI for Video-CD players that provides a variable clock error correction (VCEC) mode. The LC78632RE demodulates the EFM signal from the optical pickup and performs de-interleaving, error detection, error correction, digital filtering, and other processing. The LC78632RE includes an on-chip 1-bit D/A converter, and executes commands sent from a control microprocessor.
LC78632RE Maximum Ratings
|
Parameter |
Symbol |
Conditions |
Ratings |
Unit |
|
Maximum supply voltage |
VDD max |
0.3 to +7.0 |
V | |
|
Input voltage |
VIN |
0.3 to VDD + 0.3 |
V | |
|
Output voltage |
VOUT |
0.3 to VDD + 0.3 |
V | |
|
Allowable power dissipation |
Pd max |
470 |
mW | |
|
Operating temperature |
Topr |
30 to +75 |
°C | |
|
Storage temperature |
Tstg |
40 to +125 |
°C |
LC78632RE Features
• VCEC support
• Built-in PLL circuit for EFM detection (supports 4* playback)
• 18KB RAM on chip
• Error detection and correction (corrects two errors in C1 and four errors in C2)
• Frame jitter margin: ±8 frames
• Frame synchronization signal detection, protection, and insertion
• Dual interpolation adopted in the interpolation circuit.
• EFM data demodulation
• Subcode demodulation
• Zero-cross muting adopted
• Servo command interface
• 2fs digital filter
• Digital de-emphasis
• Built-in independent left- and right-channel digital attenuators (239 attenuation steps)
• Supports the bilingual function
• Left/right swap function
• Built-in 1-bit D/A converter (third-order ` noise shaper, PWM output)
• Built-in digital output circuit
• CLV servo
• Arbitrary track jumping (of up to 255 tracks)
• Variable sled voltage (four levels)
• Six extended I/O ports and 2 extended output ports
• Built-in oscillator circuit using an external 16.9344 MHz or 33.8688 MHz (for 4* playback) element
• Supply voltage: 4.5 to 5.5 V
• Built-in PLL circuit for EFM detection (supports 4* playback)
• 18KB RAM on chip
• Error detection and correction (corrects two errors in C1 and four errors in C2)
• Frame jitter margin: ±8 frames
• Frame synchronization signal detection, protection, and insertion
• Dual interpolation adopted in the interpolation circuit.
• EFM data demodulation
• Subcode demodulation
• Zero-cross muting adopted
• Servo command interface
• 2fs digital filter
• Digital de-emphasis
• Built-in independent left- and right-channel digital attenuators (239 attenuation steps)
• Supports the bilingual function
• Left/right swap function
• Built-in 1-bit D/A converter (third-order ` noise shaper, PWM output)
• Built-in digital output circuit
• CLV servo
• Arbitrary track jumping (of up to 255 tracks)
• Variable sled voltage (four levels)
• Six extended I/O ports and 2 extended output ports
• Built-in oscillator circuit using an external 16.9344 MHz or 33.8688 MHz (for 4* playback) element
• Supply voltage: 4.5 to 5.5 V

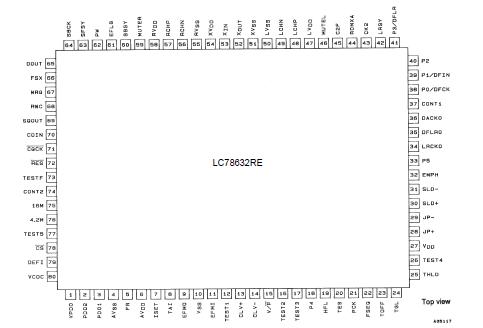

LC78632RE Connection Diagram
LC78632RE
PDF/DataSheet Download
- Datasheet: LC78632RE
- File Size: 161106 KB
- Manufacturer: SANYO [Sanyo Semicon Device]
- Click here to Download
