Features:

• A CD-G decoder can be implemented with just two
   chips: a controller is not required.
• Silicon gate CMOS structure for low power operation
• Single 5 V power supply
• 64-pin QFP (QIP) package


Pinout

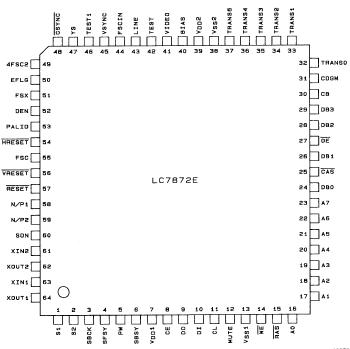

Connection Diagram


Specifications

Parameter Symbol Conditions
Ratings
Unit
Maximum supply voltage VDDmax

VSS 0.3 to +7.0
V
Maximum input voltage VIN max

VSS 0.3 to VDD + 0.3
V
Maximum output voltage VOUTmax

VSS 0.3 to VDD + 0.3
V
Allowable power dissipation Pd max

300
mW
Operating temperature Topr
30 to +85
Storage temperature Tstg
40 to +125



Description

The LC7872E is a CMOS LSI that integrates in a single chip the signal processing functions required for compact disk graphics (CD-G) decoding. The LC7872E accepts the subcode R to W signals output by a CD-DSP chip such as the Sanyo LC786X series, LC7862XE series or LC7863XE series and performs de-interleaving, error  detection and correction, graphics instruction processing and image processing.
