Product Details

Description



Features:

[Digital Filter Block]
• 4× oversampling filters: Two FIR filter stages (33rd and ninth order)
• De-emphasis filter: Supports a 44.1 kHz sampling frequency (fs).
[D/A Converter Block]
• Dynamic level shifting conversion 16-bit D/A converter
• D/A converters for two channels (synchronized outputs) on a single chip
• On-chip output operational amplifiers
• System clock: 384fs
• 5-V single-voltage power supply
• Supports low-voltage operation (3.0 V)
• Implemented in a Si gate CMOS process for low power.


Pinout

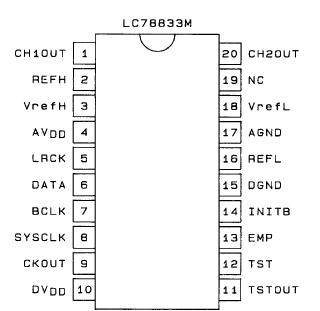

Connection Diagram


Specifications

Parameter
Symbol
Ratings
Unit
Maximum supply voltage
VDD max
0.3 to +7.0
V
Maximum input voltage
VIN max
0.3 to VDD +0.3
V
Maximum output voltage
VOUT max
0.3 to VDD +0.3
V
Operating temperature
Topr
-30to+75
°C
Storage temperature
Tstg
-40to+125
°C



Description

The LC78833M and LC78833V are CMOS 16-bit D/A converters with built-in 4 × oversampling digital filters.
