LC86E6548

Features: `Option switching by EPROM data The option function of the LC866500 series can be specified by the EPROM data.LC86E6548 can be checked the function of the trial pieces using the mass production board.`Internal one-time EPROM capacity : 49408 bytes`Internal RAM capacity : 1152 bytes Used ...

product image

LC86E6548 Picture
See larger image
SeekIC No. : 004392406 Detail

LC86E6548: Features: `Option switching by EPROM data The option function of the LC866500 series can be specified by the EPROM data.LC86E6548 can be checked the function of the trial pieces using the mass produ...

LC86E6548 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC86E6548
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Option switching by EPROM data The option function of the LC866500 series can be specified by the EPROM data.
   LC86E6548 can be checked the function of the trial pieces using the mass production board.
`Internal one-time EPROM capacity : 49408 bytes
`Internal RAM capacity : 1152 bytes Used EPROM or RAM capacity are equal ROM or RAM capacity of mask ROM ersion
   which applies LC86E6548 .
Mask ROM version
EPROM capacity
RAM capacity
LC866548

49152 bytes

1152 bytes

LC866540
40960 bytes
1152 bytes
LC866532
32768 bytes
1152 bytes
LC866528
28672 bytes
896 bytes
LC866524
24576 bytes
896 bytes
`Operating supply voltage : 4.5V to 6.0V
`Instruction cycle time : 1.0s to 366s
`Operating temperature : +10°C to +40°C
`The pin compatible with the LC866500 series mask ROM devices
`Applicable mask ROM version : LC866548/LC866540//LC866532/LC866528/LC866524
`Factory shipment : QFC100S(with window)


Pinout

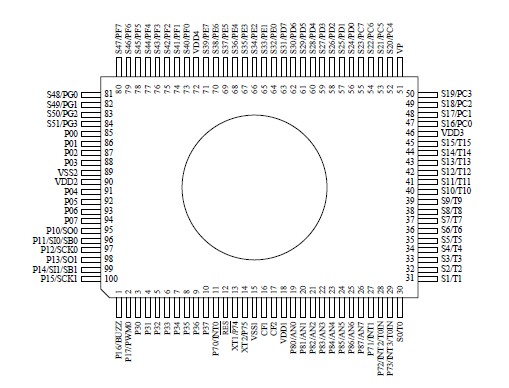

Connection Diagram


Description

The LC86E6548 is a CMOS 8-bit single chip microcontroller with UVEPROM for the LC866500 series. This microcontroller has the function and the pin description of the LC866500 series mask ROM version, and 48K-byte EPROM. The program data is rewritable. It is suitable to develop the program.
