LD1117AS12TR

Number of Outputs : 1
Maximum Operating Temperature : + 125 C
Mounting Style : SMD/SMT
Output Type : Fixed
Package / Case : SOT-223
Output Voltage : 1.2 V
Load Regulation : 10 mV
Input Voltage MAX : 10 V
Output Current : 1000 mA
Dropout Voltage (Max) : 1.1 V at 100 mA


Features:

` LOW DROPOUT VOLTAGE
  (1.15V TYP. @ IOUT = 1A, 25°C)
` VERY LOW QUIESCENT CURRENT
  (5 mA TYP. @ 25°C)
` OUTPUT CURRENT UP TO 1A
` FIXED OUTPUT VOLTAGE OF: 1.2V, 1.8V,
  2.5V, 2.85V, 3.3V, 5.0V
` ADJUSTABLE VERSION AVAILABILITY
  (Vrel = 1.25V)
` INTERNAL CURRENT AND THERMAL LIMIT
` ONLY 10 F FOR STABILITY
` AVAILABLE IN ± 2% (AT 25°C) AND 4% IN
  FULL TEMPERATURE RANGE
` HIGH SUPPLY VOLTAGE REJECTION:
  (80dB TYP. AT 25°C)
` TEMPERATURE RANGE: 0°C TO 125°C

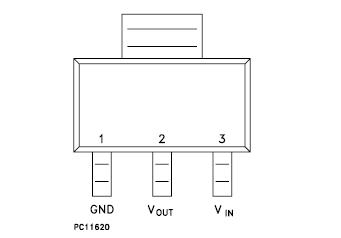

Pinout




Specifications

Symbol	Parameter	Value	Unit
VIN	DC Input Voltage	10	V
Ptot	Power Dissipation	12	W
TSTG	Storage Temperature Range	-40 to +150	°C
TOP	Operating Junction Temperature Range	0 to +1	°C

Description

The LD1117AS12TR is a LOW DROP Voltage Regulator able to provide up to 1A of Output Current, available even in adjustable version (Vref=1.25V). Concerning fixed versions, are offered the following Output Voltages: 1.2V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V. The 2.85V type is ideal for SCSI-2 lines active termination. The LD1117AS12TR is supplied in: SOT-223, DPAK and TO-220. The surface mount packages optimize the thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor. Only a very common 10F minimum capacitor is needed for stability. Only chip trimming allows the regulator to reach a very tight output voltage tolerance, within ± 2% at 25°C.

Parameters:

Technical/Catalog Information	LD1117AS12TR
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Regulator Type	Single Output
Package / Case	SOT-223, SC-73, TO-261 (3 Leads + Tab)
Packaging	Tape & Reel (TR)
Regulator Topology	Positive Fixed
Current - Output	1A
Voltage - Output	1.2V
Operating Temperature	0°C ~ 125°C
Voltage - Input	2.75 ~ 10 V
Number of Regulators	1
Current - Limit (Min)	-
Current Short Circuit (Isc)	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LD1117AS12TR LD1117AS12TR 497 6445 2 ND 49764452ND 497-6445-2
