General Description
LD29300 General Description
The LD29300 is a high current, high accuracy, low-dropout voltage regulator series. These regulators feature 400mV dropout voltage and very low ground current. Designed for high current loads, these devices are also used in lower current, extremely low dropout-critical systems, where their tiny dropout voltage and ground current values are important attributes. Typical applications are in Power supply switching post regulation, Series power supply for monitors, Series power supply for VCRs and TVs, Computer Systems and Battery powered systems.
LD29300 Maximum Ratings
|
Symbol |
Parameter2 |
Value |
Unit |
|
VI |
DC Input Voltage |
30(*) |
V |
|
IO |
Output Current |
Internally Limited |
mA |
|
PD |
Power Dissipation |
Internally Limited |
mW |
|
Tstg |
Storage Temperature Range |
-55 to +150 |
°C |
|
Top |
Operating Junction Temperature Range |
-40 to +125 |
°C |
LD29300 Features
VERY LOW DROPOUT VOLTAGE (TYP. 0.4 AT 3A)
GUARANTEED OUTPUT CURRENT UP TO 3A
FIXED VOLTAGE WITH ±1% TOLERANCE AT 25°C
INTERNAL CURRENT AND THERMAL LIMIT
LOGIC CONTROLLED ELECTRONIC SHUTDOWN AVAILABLE IN PPAK
GUARANTEED OUTPUT CURRENT UP TO 3A
FIXED VOLTAGE WITH ±1% TOLERANCE AT 25°C
INTERNAL CURRENT AND THERMAL LIMIT
LOGIC CONTROLLED ELECTRONIC SHUTDOWN AVAILABLE IN PPAK

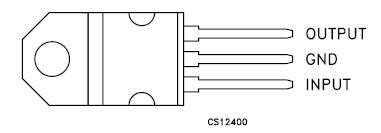

LD29300 Connection Diagram
LD29300
PDF/DataSheet Download
- Datasheet: LD29300
- File Size: 543618 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
