MFG:ST Package Cooled:SOP D/C:07+
MFG: ST
Package Cooled: SOP
D/C: 07+
Description: These circuits are high speed JFET input quad operational amplifiers incorporating well matched,high v...
These circuits are high speed JFET input quad operational amplifiers incorporating well matched,high voltage JFET and bipolar transistors in a monolithic integrated circuit.
The devices feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.
|

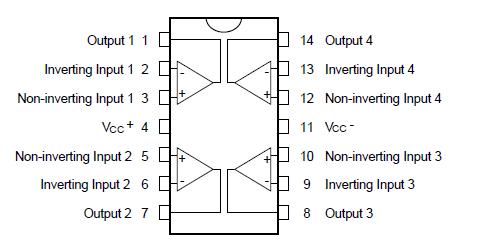

Symbol |
Parameter |
LF147 |
LF247 |
LF347 |
Unit |
|
VCC |
Supply voltage - note 1) |
±18 |
V | ||
|
Vi |
Input Voltage - note 2) |
±15 |
V | ||
|
Vid |
Differential Input Voltage - note 3) |
±30 |
V | ||
|
Ptot |
Power Dissipation |
680 |
mW | ||
| Output Short-circuit Duration - note 4) |
Infinite |
||||
|
Toper |
Operating Free-air Temperature Range |
-55 to +125 |
-40 to +105 |
0 to +70 |
°C |
|
Tstg |
Storage Temperature Range |
-65 to +150 |
°C | ||
1.All voltage values, except differential voltage, are with respect to the zero reference level (ground) of the supply voltages where the zero reference level is the midpoint between VCC+ and VCC-.
2. The magnitude of the input voltage must never exceed the magnitude of the supply voltage or 15 volts, whichever is less.
3. Differential voltages are the non-inverting input terminal with respect to the inverting input terminal.
4. The output may be shorted to ground or to either supply. Temperature and/or supply voltages must be limited to ensure that the dissipation rating
is not exceeded
LF247
PDF/DataSheet Download
