Product Details

Description

Features:

` 8,192 *8 bit organization
` Access times: 80/100 ns (MAX.)
` Low-power consumption:
    Operating:
    303 mW (MAX.) LH5164A/D/N
    @ 80 ns
    248 mW (MAX.) LH5164A/D/N/T
    @ 100 ns
    275 mW (MAX.) LH5164AH/HD/HN/HT
    @ 100 ns
    Standby:
    LH5164A/D/N/T: 5.5 W (MAX.)
    LH5164AH/HD/HN/HT:
    TA 85: 16.5 W (MAX.)
    TA 70: 5.5 W (MAX.)
` Fully-static operation
` Three-state outputs
` Single +5 V power supply
` TTL compatible I/O
` Wide temperature range available
    LH5164A: -10 to +70
    LH5164AH: -40 to +85
` Packages:
    28-pin, 600-mil DIP
    28-pin, 300-mil SK-DIP
    28-pin, 450-mil SOP
    28-pin, 8 ´ 13 mm2 TSOP (Type I)

Pinout

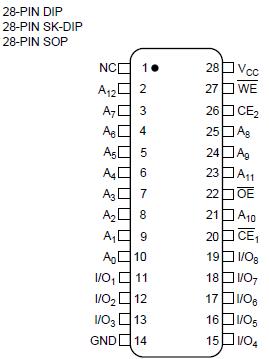

Connection Diagram

Specifications

PARAMETER	SYMBOL	80	UNIT
PARAMETER	SYMBOL	RATING	UNIT	NOTE
Supply voltage	V_CC	0.3 to +7.0		1
Input voltage	V_IN	-0.3 to VCC + 0.3	V	1,2
Operating temperature	T_opr	-10 to +70		3
Operating temperature	T_opr			4
Storage temperature	T_stg	55 to +150

NOTES:
1. The maximum applicable voltage on any pin with respect to GND.
2. V_IN (MIN.) = -3.0 V for pulse width±50 ns.
3. LH5164A/AD/AN/AT
4. LH5164AH/AHD/AHN/AHT

Description

The LH5164A/AH are static RAMs organized as 8,192 ×8 bits. It is fabricated using silicon-gate CMOS process technology.

The LH5164AH is designed for wide temperature range from -40 to +85°C.
