Purchase LH531000B-S, In-stock LH531000B-S From SeekIC.
MFG:SHARP D/C:05+
Part Number: LH531000B-S
MFG: SHARP
D/C: 05+
Description: The LH531000B-S is a mask-programmable ROM organized as 131,072×8 bits. It is fabricated using silicon...
- Table of contents:
LH531000B-S
-
Suppliers
DataSheet
General Description
LH531000B-S General Description
The LH531000B-S is a mask-programmable ROM organized as 131,072×8 bits. It is fabricated using silicon-gate CMOS process technology.
LH531000B-S Maximum Ratings
| PARAMETER |
SYMBOL |
RATING |
UNIT |
| Supply voltage |
Vcc |
0.3 to +7.0 |
V |
| Input voltage |
VIN |
0.3 to VCC + 0.3 |
V |
| Output voltage |
VOUT |
0.3 to VCC + 0.3 |
V |
| Operating temperature |
Topr |
0 to +70 |
|
| Storage temperature |
Tstg |
65 to +150 |
LH531000B-S Features
· 131,072 words×8 bit organization
· Access time: 500 ns (MAX.)
· Power consumption:
Operating: 64.8 mW (MAX.)
Standby: 108 mW (MAX.)
· Mask-programmable control pin:
Pin 20 = CE/OE/OE
· Static operation
· Three-state outputs
· Low power supply: 2.6 V to 3.6 V
· Package: 28-pin, 450-mil SOP
· Access time: 500 ns (MAX.)
· Power consumption:
Operating: 64.8 mW (MAX.)
Standby: 108 mW (MAX.)
· Mask-programmable control pin:
Pin 20 = CE/OE/OE
· Static operation
· Three-state outputs
· Low power supply: 2.6 V to 3.6 V
· Package: 28-pin, 450-mil SOP

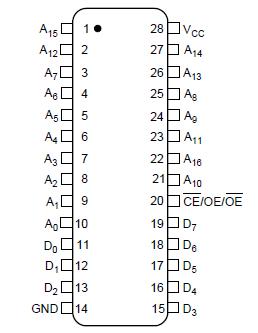

LH531000B-S Connection Diagram
LH531000B-S
