Purchase LH531024, In-stock LH531024 From SeekIC.
MFG:SHARP D/C:05+
Part Number: LH531024
MFG: SHARP
D/C: 05+
Description: The LH531024 is a mask-programmable ROM organized as 65,536×16 bits. It is fabricated using silicon-ga...
- Table of contents:
LH531024
-
Suppliers
DataSheet
General Description
LH531024 General Description
The LH531024 is a mask-programmable ROM organized as 65,536×16 bits. It is fabricated using silicon-gate CMOS process technology.
LH531024 Maximum Ratings
| PARAMETER | SYMBOL | RATING | UNIT |
| Supply voltage | Vcc | 0.3 to +7.0 | V |
| Input voltage |
VIN | 0.3 to VCC + 0.3 | V |
| Output voltage |
VOUT |
0.3 to VCC + 0.3 |
V |
| Operating temperature | Topr | 0 to +70 |
|
| Storage temperature | Tstg | 65 to +150 |
LH531024 Features
` 65,536 words*16 bit organization
` Access time: 100 ns (MAX.)
` Power consumption:
Operating: 412.5 mW (MAX.)
Standby: 550 W (MAX.)
` Static operation
` TTL compatible I/O
` Three-state outputs
` Single +5 V power supply
` JEDEC standard EPROM pinout (DIP)
` Packages:
40-pin, 600-mil DIP
40-pin, 525-mil SOP
44-pin, 650-mil QFJ (PLCC)

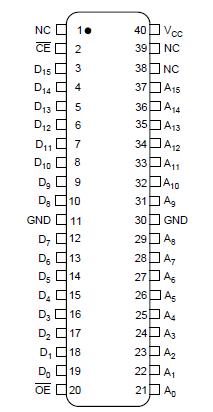

LH531024 Connection Diagram
LH531024
PDF/DataSheet Download
- Datasheet: LH531024
- File Size: 73771 KB
- Manufacturer: SHARP [Sharp Electrionic Components]
- Click here to Download
