Product Details

Description

Features:

· 3,145,728 words ×8 bit organization
    (Byte mode)
    1,572,864 words ×16 bit organization
    (Word mode)
· Access time: 150 ns (MAX.)
· Power consumption:
    Operating: 357.5 mW (MAX.)
    Standby: 550 mW (MAX.)
· Static operation
· TTL compatible I/O
· Three-state outputs
· Single +5 V power supply
· Package: 44-pin, 600-mil SOP

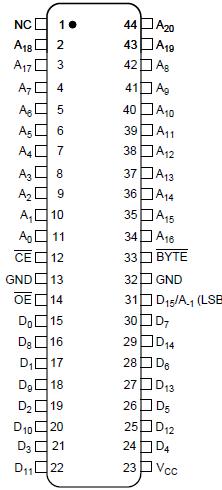

Pinout

Connection Diagram

Specifications

PARAMETER	SYMBOL	RATING	UNIT
Supply voltage	V_CC	0.3 to +7.0	V
Input voltage	V_IN	0.3 to V_CC+ 0.3	V
Output voltage	V_OUT	0.3 to V_CC + 0.3	V
Operating temperature	T_opr	0 to +70
Storage temperature	T_stg	65 to +150

Description

The LH5324500 is a 24M-bit mask-programmable ROM organized as 3,145,728 ×8 bits (Byte mode) or 1,572,864×16 bits (Word mode) that can be selected by a BYTE input pin. It is fabricated using silicon-gate CMOS process technology.
