Description: The LH5P8129 is a 1M bit Pseudo-Static RAM organized as 131,072 ×8 bits. It is fabricated using silico...
- Table of contents:
LH5P8129
-
Suppliers
DataSheet
General Description
LH5P8129 General Description
The LH5P8129 is a 1M bit Pseudo-Static RAM organized as 131,072 ×8 bits. It is fabricated using silicon-gate CMOS process technology.
A PSRAM uses on-chip refresh circuitry with a DRAM memory cell for pseudo static operation which eliminates external clock inputs, while considering the pinout compatibility with industry standard SRAMs. The advantage is the cost savings realized with the lower cost PSRAM.
The LH5P8129 PSRAM has a built-in oscillator, which makes it easy to refresh memories without external clocks.
LH5P8129 Maximum Ratings
| PARAMETER | SYMBOL | RATING | UNIT | NOTE |
| Applied voltage on any pins | VT | -1.0 to +7.0 | V | 1 |
| Output short circuit current | IO | 50 | mA | |
Power dissipation |
PD |
600 | mW | |
| Operating temperature |
Topr |
0 to +70 |
| |
| Storage temperature | Tstg |
65 to +150 |
NOTE:
1. The maximum applicable voltage on any pin with respect to GND.
LH5P8129 Features
· 131,072×8 bit organization
· Access times (MAX.): 60/80/100 ns
· Cycle times (MIN.): 100/130/160 ns
· Single +5 V power supply
· Pin compatible with 1M standard SRAM
· Power consumption:
Operating: 572/385/275 mW (MAX.)
Standby (TTL level): 5.5 mW (MAX.)
Standby (CMOS level): 1.1 mW (MAX.)
· TTL compatible I/O
· Available for auto-refresh and self-refresh modes
· 512 refresh cycles/8 ms
· Packages:
32-pin, 600-mil DIP
32-pin, 525-mil SOP
32-pin, 8×20 mm2 TSOP (Type I)
· Access times (MAX.): 60/80/100 ns
· Cycle times (MIN.): 100/130/160 ns
· Single +5 V power supply
· Pin compatible with 1M standard SRAM
· Power consumption:
Operating: 572/385/275 mW (MAX.)
Standby (TTL level): 5.5 mW (MAX.)
Standby (CMOS level): 1.1 mW (MAX.)
· TTL compatible I/O
· Available for auto-refresh and self-refresh modes
· 512 refresh cycles/8 ms
· Packages:
32-pin, 600-mil DIP
32-pin, 525-mil SOP
32-pin, 8×20 mm2 TSOP (Type I)

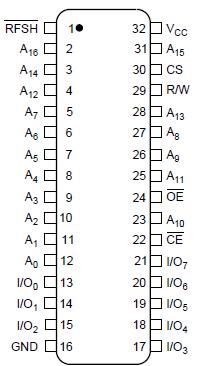

LH5P8129 Connection Diagram
LH5P8129
