Part Number: LH5P864
MFG: SHARP
D/C: 05+
Description: The LH5P864 is a 512K-bit Pseudo-Static RAM organized as 65,536 8 bits. It is fabricated using silicon...
- Table of contents:
LH5P864
-
Suppliers
DataSheet
General Description
LH5P864 General Description
The LH5P864 is a 512K-bit Pseudo-Static RAM organized as 65,536 8 bits. It is fabricated using silicon- gate CMOS process technology. With its built-in oscillator, it is easy to refresh memories without an external clock.
LH5P864 Maximum Ratings
| PARAMETER | SYMBOL | RATING | UNIT | NOTE |
| Applied voltage on all pins | VT | 1.0 to +7.0 | V | 1 |
| Output short circuit current | IO | 50 | mA | |
| Power dissipation | PD | 600 | mW | |
| Operating temperature | Topr | 0 to +70 | ||
| Storage temperature | Tstg | 65 to +150 |
NOTE:
1. The maximum applicable voltage on any pin with respect to GND.
LH5P864 Features
` 65,536*8 bit organization
` Access time: 80 ns (MAX.)
` Cycle time: 140 ns (MIN.)
` Single +5 V power supply
` Power consumption:
Operating: 440 mW (MAX.)
Standby (TTL level): 22 mW (MAX.)
Standby (CMOS level): 2.75 mW (MAX.)
` Operating temperature: 0 to 70
` TTL compatible I/O
` 512 refresh cycles/8 ms (MAX.)
` Available for auto-refresh and self-refresh modes
` Package: 32-pin, 525-mil SOP
` Access time: 80 ns (MAX.)
` Cycle time: 140 ns (MIN.)
` Single +5 V power supply
` Power consumption:
Operating: 440 mW (MAX.)
Standby (TTL level): 22 mW (MAX.)
Standby (CMOS level): 2.75 mW (MAX.)
` Operating temperature: 0 to 70
` TTL compatible I/O
` 512 refresh cycles/8 ms (MAX.)
` Available for auto-refresh and self-refresh modes
` Package: 32-pin, 525-mil SOP

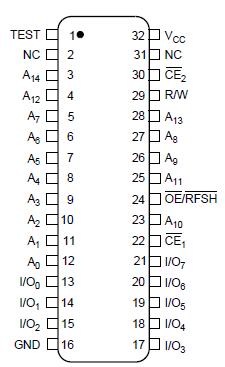

LH5P864 Connection Diagram
LH5P864
PDF/DataSheet Download
- Datasheet: LH5P864
- File Size: 78431 KB
- Manufacturer: SHARP [Sharp Electrionic Components]
- Click here to Download
- ·LH504
- 1455172 KB
- ·LH5116
- SHARP [Sharp Electrionic Components]
- CMOS 16K (2K x 8) Static RAM
- 89302 KB
- ·LH5116-10
- SHARP [Sharp Electrionic Components]
- CMOS 16K (2K x 8) Static RAM
- 89302 KB
- ·LH5116D-10
- SHARP [Sharp Electrionic Components]
- CMOS 16K (2K x 8) Static RAM
- 89302 KB
- ·LH5116H
- MCNIX [Macronix International]
- CMOS 16K (2K x 8) Static RAM
- 89302 KB
- ·LH5116H-10
- SHARP [Sharp Electrionic Components]
- CMOS 16K (2K x 8) Static RAM
- 89302 KB
- ·LH5116HD-10
- SHARP [Sharp Electrionic Components]
- CMOS 16K (2K x 8) Static RAM
- 89302 KB
- ·LH5116HN-10
- SHARP [Sharp Electrionic Components]
- CMOS 16K (2K x 8) Static RAM
- 89302 KB
LH5P864 Relative Products
LH5P860
The LH5P860 is a 512K-bit Pseudo-Static RAM organized as 65,536 ´ 8 bits. It is fabricated using silicon- gate CMOS process technology. With its built-in oscillator, it is easy to refresh memories without an external clock.
LH5P832
The LH5P832 is a 256K bit Pseudo-Static RAM organized as 32,768 ´ 8 bits. It is fabricated using silicon- gate CMOS process technology.The LH5P832 uses convenient on-chip refresh circuitry with a DRAM memory cell for pseudo static operation. This simpl...
LH5P8129
The LH5P8129 is a 1M bit Pseudo-Static RAM organized as 131,072 ×8 bits. It is fabricated using silicon-gate CMOS process technology.A PSRAM uses on-chip refresh circuitry with a DRAM memory cell for pseudo static operation which eliminates external clock in...
LH5P8128
The LH5P8128 is a 1M bit Pseudo-Static RAM organized as 131,072×8 bits. It is fabricated using silicon-gate CMOS process technology.A PSRAM uses on-chip refresh circuitry with a DRAM memory cell for pseudo static operation which eliminates external clock inp...
LH5P1632
The LH5P1632 is a 512K-bit Pseudo-Static RAM organized as 32,768×16 bits. It is fabricated using silicon-gate CMOS process technology.
LH5749J
The LH5749J is a kind of high-performance 64K, UV erasable, electrically programmable read-only-memory, organized as 8,192*8 bits. It is manufactured using advanced CMOS technology which allows it to operate at Bipolar speeds while comsuming only 75 mA. The ...
