Part Number: LM158W
Description: These circuits consist of two independent, highgain, internally frequency-compensated which were desig...
- Table of contents:
LM158W
-
Suppliers
DataSheet
General Description
LM158W General Description
These circuits consist of two independent, highgain, internally frequency-compensated which were designed specifically to operate from a single power supply over a wide range of voltages. The low power supply drain is independent of the magnitude of the power supply voltage.
Application areas include transducer amplifiers, DC gain blocks and all the conventional op-amp circuits which now can be more easily implemented in single power supply systems. For example, these circuits can be directly supplied with the standard +5 V which is used in logic systems and will easily provide the required interface electronics without requiring any additional power supply.
In the linear mode the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from only a single power supply voltage.
LM158W Maximum Ratings
| Symbol | Parameter | LM158W/AW | LM258W/AW | LM358W/AW | Unit |
| VCC | Supply voltage | +32 | V | ||
| Vi | Input voltage | -0.3 to VCC +0.3 | V | ||
| Vid | Differential input voltage | -0.3 to VCC +0.3 | V | ||
| Ptot | Power dissipation (1) | 500 | mW | ||
| Output short-circuit duration (2) | Infinite | ||||
| Iin | Input current (3) | 50 | mA | ||
| Toper | Operating free-air temperature range | -55 to +125 | -40 to +105 | 0 to +70 | °C |
| Tstg | Storage temperature range | -65 to +150 | °C | ||
| Rthja | Thermal resistance junction to ambient(4) (5) |
°C/W | |||
| SO-8 | 125 | ||||
| MiniSO-8 | 190 | ||||
| TSSOP8 | 120 | ||||
| DIP-8 | 85 | ||||
| Rthjc | Thermal resistance junction to case | °C/W | |||
| SO-8 | 40 | ||||
| MiniSO-8 | 39 | ||||
| TSSOP8 | 37 | ||||
| DIP-8 | 41 | ||||
| ESD | HBM: human body model(6) | 2 | kV | ||
| MM: machine model(7) | 200 | V | |||
| CDM: charged device model(8) | 1.5 | kV | |||
LM158W Features
· Internally frequency compensated
· Large DC voltage gain: 100 dB
· Wide bandwidth (unity gain): 1.1 MHz
(temperature compensated)
· Very low supply current per operator
essentially independent of supply voltage
· Low input bias current: 20 nA
(temperature compensated)
· Low input offset voltage: 2 mV
· Low input offset current: 2 nA
· Input common-mode voltage range includes ground
· Differential input voltage range equal to the
power supply voltage
· Large output voltage swing 0 V to (VCC - 1.5 V)
· ESD internal protection: 2 kV
· Large DC voltage gain: 100 dB
· Wide bandwidth (unity gain): 1.1 MHz
(temperature compensated)
· Very low supply current per operator
essentially independent of supply voltage
· Low input bias current: 20 nA
(temperature compensated)
· Low input offset voltage: 2 mV
· Low input offset current: 2 nA
· Input common-mode voltage range includes ground
· Differential input voltage range equal to the
power supply voltage
· Large output voltage swing 0 V to (VCC - 1.5 V)
· ESD internal protection: 2 kV
LM158W Connection Diagram
LM158WN
PDF/DataSheet Download
- Datasheet: LM158WN
- File Size: 314406 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
- ·LM10
- LINER [Linear Technology]
- Low Power Op Amp and Reference
- 805461 KB
- ·LM1001-7R
- POWER-ONE [Power-One]
- 50 Watt AC-DC Converters
- 150434 KB
- ·LM101
- NSC [National Semiconductor]
- Operational Amplifiers
- 521472 KB
- ·LM101A
- LINER [Linear Technology]
- Operational Amplifiers
- 521472 KB
- ·LM101AD
- STMICROELECTRONICS [STMicroelectronics]
- SINGLE OPERATIONAL AMPLIFIER
- 73655 KB
- ·LM101AFK
- TI [Texas Instruments]
- HIGH-PERFORMANCE OPERATIONAL AMPLIFIERS
- 73655 KB
- ·LM101AH
- LINER [Linear Technology]
- Operational Amplifiers
- 397624 KB
- ·LM101AH/883
- NSC [National Semiconductor]
- Operational Amplifiers
- 521472 KB
LM158W Relative Products
LM158N
IC OP AMP DUAL LOW POWER 8-DIP
LM158J
The LM158J is a kind of low power dual operational amplifier which includes two independent, high gain, internally frequency compensated operational amplifiers. The typical applications include transducer amplifiers, dc gain blocks and all the conventional o...

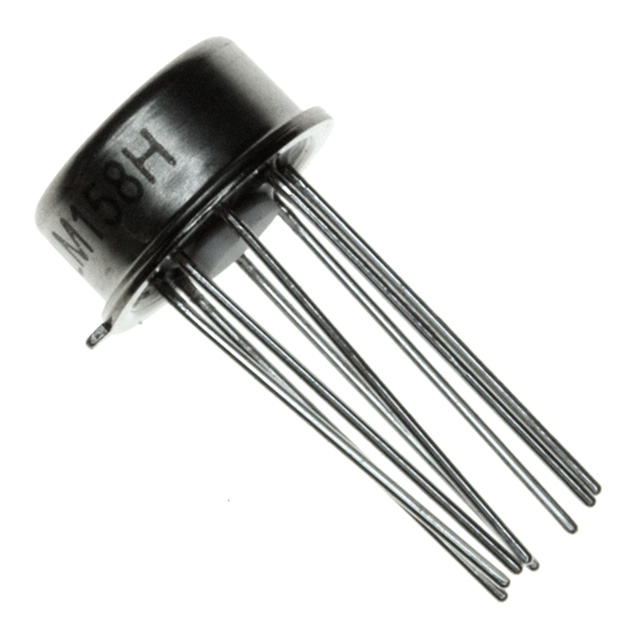

LM158H/NOPB
