LM185QML

Features:

Adjustable from 1.24V to 5.30V
Operating current of 10A to 20mA
1 dynamic impedance
Low temperature coefficient

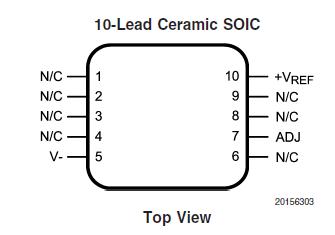

Pinout




Specifications

Reverse Current .....................................................................  30mA
Forward Current .....................................................................  10mA
Operating Temperature Range ...............................................  −55°C TA 125°C
Storage Temperature .............................................................  −55°C TA 150°C
Maximum Junction Temperature T_Jmax ...................................  150°C
Lead Temperature (soldering, 10 seconds) ............................  300°C
Thermal Resistance
  _JA
    LCC Package (Still Air) .........................................................  100°C/W
    LCC Package (500LF/Min Air flow) .......................................  73°C/W
    Metal Can Package (Still Air) ................................................  300°C/W
    Metal Can Package (500LF/Min Air flow) ..............................  139°C/W
    Ceramic SOIC Package (Still Air) ..........................................  194°C/W
    Ceramic SOIC Package (500LF/Min Air flow) ........................  128°C/W
  _JC
    LCC Package .......................................................................  25°C/W
    Metal Can Package ..............................................................  57°C/W
    Ceramic SOIC Package ........................................................  23°C/W
Package Weight (Typical)
  LCC Package .........................................................................  TBD
  Metal Can Package ................................................................  TBD
  Ceramic SOIC Package ..........................................................  210mg
ESD Tolerance (Note 2) ...........................................................  500V


Description

The LM185QML are micropower 3-terminal adjustable band-gap voltage reference diodes. Operating from 1.24 to 5.3V and over a 10A to 20mA current range, they feature exceptionally low dynamic impedance and good temperature stability. On-chip trimming is used to provide tight voltage tolerance. Since the LM185 band-gap reference uses only transistors and resistors, low noise and good long-term stability result.

Careful design of the LM185QML has made the device tolerant of capacitive loading, making it easy to use in almost any reference application. The wide dynamic operating range allows its use with widely varying supplies with excellent regulation.

The extremely low power drain of the LM185QML makes it useful for micropower circuitry. This voltage reference can be used to make portable meters, regulators or general purpose analog circuitry with battery life approaching shelf life. Further, the wide operating current allows it to replace older references with a tighter tolerance part.
