MFG:National Semiconductor Category:Integrated Circuits (ICs)
Category: Integrated Circuits (ICs)
MFG: National Semiconductor
Descriptions: IC REG SYNC BUCK 6A 16-TSSOP
2500
3.02500
7562.50
| Technical/Catalog Information | LM20136MHX/NOPB |
| Vendor | National Semiconductor |
| Category | Integrated Circuits (ICs) |
| Type | Step-Down (Buck) |
| Number of Outputs | 1 |
| Voltage - Input | 2.95 ~ 5.5 V |
| Voltage - Output | 0.8 ~ 5 V |
| Current - Output | 6A |
| Power - Output | 2.6W |
| Package / Case | 16-TSSOP Exposed Pad, 16-eTSSOP, 16-HTSSOP |
| Packaging | Tape & Reel (TR) |
| Internal Switch(s) | Yes |
| Synchronous | Yes |
| Rds (On) | 20 mOhm (High side), 16 mOhm (Low side) |
| Operating Temperature | -40°C ~ 125°C |
| Frequency - Switching | 410kHz |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | LM20136MHX NOPB LM20136MHXNOPB LM20136MHX ND LM20136MHXND LM20136MHX |
LM20
PDF/DataSheet Download
IC REG SYNC BUCK 6A 16-TSSOP
IC REG SYNC BUCK 6A 16-TSSOP
The LM20134MH is a full featured synchronous buck regulator capable of delivering up to 4A of continuous output current. The device is optimized to work over the input voltage range of 2.95V to 5.5V making it suited for a wide variety of low voltage systems....
The LM20133MH is a full featured synchronous buck regulator capable of delivering up to 3A of continuous output current. The device is optimized to work over the input voltage range of 2.95V to 5.5V making it suited for a wide variety of low voltage systems....

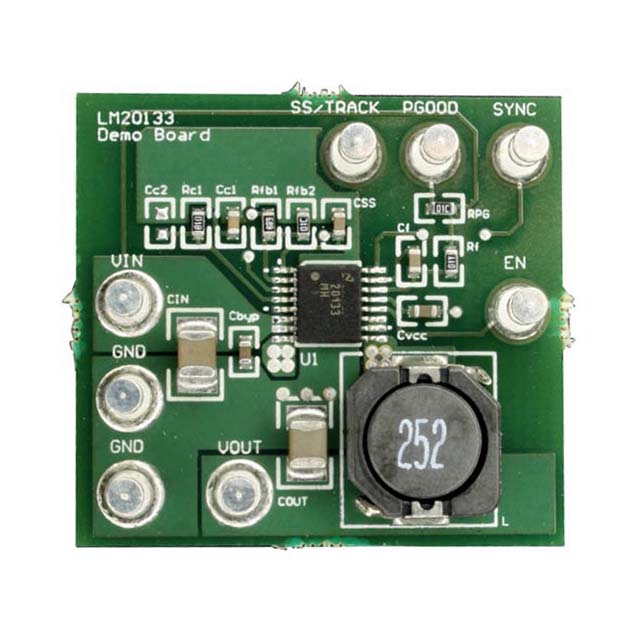

BOARD EVAL 3A POWERWISE LM20133
The LM20125MH is is a full featured 500 kHz synchronous buck regulator capable of delivering up to 5A of continuous output current. The device is optimized to work over the input voltage range of 2.95V to 5.5V making it suited for a wide variety of low volta...
