LM2403

Features: ` Rise/fall times typically 4.5 nS with 8 pF load at 40 Vpp` Well matched with LM1283 video preamp` Output swing capability: 60 Vpp for VCC = 80V` 1V to 5V input range` Stable with 0 pF20 pF capacitive loads and inductive peaking networks` Convenient TO-220 staggered lead package style` ...

product image

LM2403 Picture
See larger image
SeekIC No. : 004394829 Detail

LM2403: Features: ` Rise/fall times typically 4.5 nS with 8 pF load at 40 Vpp` Well matched with LM1283 video preamp` Output swing capability: 60 Vpp for VCC = 80V` 1V to 5V input range` Stable with 0 pF20 ...

LM2403 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LM2403
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Rise/fall times typically 4.5 nS with 8 pF load at 40 Vpp
` Well matched with LM1283 video preamp
` Output swing capability: 60 Vpp for VCC = 80V
` 1V to 5V input range
` Stable with 0 pF20 pF capacitive loads and inductive peaking networks
` Convenient TO-220 staggered lead package style
` Standard LM240X Family Pinout which is designed for easy PCB layout


Pinout

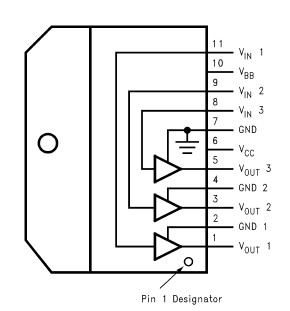

Connection Diagram


Specifications

Supply Voltage (VCC)                                                 +90V
Bias Voltage (VBB)                                                     +16V
Input Voltage (VIN)                           −0.5V to VBIAS +0.5V
Storage Temperature Range (TSTG)     −65°C to +150°C
Lead Temperature
    (Soldering, <10 sec.)                                          300°C
ESD Tolerance, Human Body Model 2 kV
    Machine Model                                                       250V
