Features:

Wide range integrated triple bias clamp
High input impedance
Single supply operation
Matched to the LM126X family of preamplifiers

Application

CRT monitors requiring DC restoration at the cathodes

Pinout

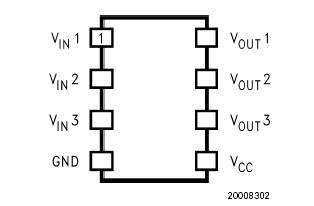

Connection Diagram

Specifications

Supply Voltage, V_CC                                                     +90V
Input Voltage, V_IN                                                    0V to 5V
Storage Temperature Range, T_STG             -65°C to +150°C
Lead Temperature (Soldering, <10sec.)                      300°C
ESD Tolerance Machine Model                                       200V
Human Body Model                                                         2KV

Description

The LM2480 driver is an Integrated 80V triple bias clamp circuit for DC recovery of each of the AC coupled outputs of a CRT driver. It is well matched with the DAC outputs of the LM126X family of pre-amplifiers. Each amplifier has its gain internally set to -18. The IC is packaged in an industry standard 8 lead molded DIP package.
