Part Number: LM2717-ADJ
Description: The LM2717-ADJ is composed of two PWM DC/DC buck (step-down) converters. Both converters are used to g...
- Table of contents:
LM2717-ADJ
-
Suppliers
DataSheet
General Description
LM2717-ADJ General Description
The LM2717-ADJ is composed of two PWM DC/DC buck (step-down) converters. Both converters are used to generate an adjustable output voltage as low as 1.267V. Both also feature low RDSON (0.16) internal switches for maximum efficiency. Operating frequency can be adjusted anywhere between 300kHz and 600kHz allowing the use of small external components. External soft-start pins for each enables the user to tailor the soft-start times to a specific application. Each converter may also be shut down independently with its own shutdown pin. The LM2717-ADJ is available in a low profile 24-lead TSSOP package ensuring a low profile overall solution.
LM2717-ADJ Maximum Ratings
If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
VIN −0.3V to 22V
SW1 Voltage................... −0.3V to 22V
SW2 Voltage................... −0.3V to 22V
FB1 Voltage.................... −0.3V to 7V
FB2 Voltage ....................−0.3V to 7V
VC1 Voltage ...............1.75V VC1 2.25V
VC2 Voltage ..............0.965V VC2 1.565V
SHDN1 Voltage ..................−0.3V to 7.5V
SHDN2 Voltage ..................−0.3V to 7.5V
SS1 Voltage ...................−0.3V to 2.1V
SS2 Voltage ...................−0.3V to 2.1V
FSLCT Voltage................... AGND to 5V
Maximum Junction Temperature ............150°C
Power Dissipation(Note 2)..........Internally Limited
Lead Temperature ...................300°C
Vapor Phase (60 sec.) .................215°C
Infrared (15 sec.)....................220°C
ESD Susceptibility (Note 3)
Human Body Model.....................2kV
LM2717-ADJ Features
`Adjustable buck converter with a 2.2A, 0.16, internal switch (Buck 1)
`Adjustable buck converter with a 3.2A, 0.16, internal switch (Buck 2)
`Operating input voltage range of 4V to 20V
`Input undervoltage protection
`300kHz to 600kHz pin adjustable operating frequency
`Over temperature protection
`Small 24-Lead TSSOP package
`Adjustable buck converter with a 3.2A, 0.16, internal switch (Buck 2)
`Operating input voltage range of 4V to 20V
`Input undervoltage protection
`300kHz to 600kHz pin adjustable operating frequency
`Over temperature protection
`Small 24-Lead TSSOP package
LM2717-ADJ Typical Application
·TFT-LCD Displays
·Handheld Devices
·Portable Applications
·Laptop Computers
·Handheld Devices
·Portable Applications
·Laptop Computers

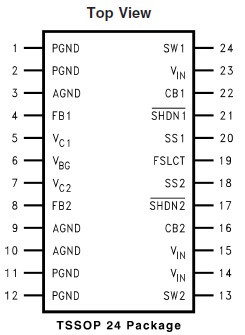

LM2717-ADJ Connection Diagram
LM2717-ADJ
